- Showing 13–24 of 94 items

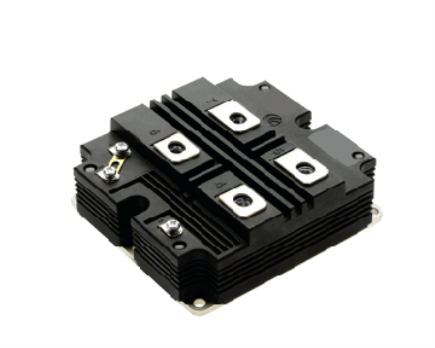

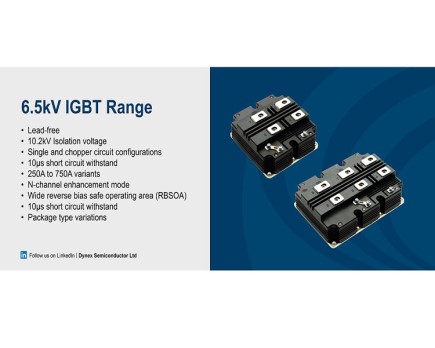

Dynex IGBT Modules The acclaimed DIM (IGBT High-Power Modules) are robust and work with high reliability at any temperature condition from -40/-50°C up to +150°C. They are offered in a range of 500A to 3600A at 1200V to 6.5kV, which enables them to function in different circuit topologies (half bridge, single switch and chopper) in various high power inverter power ratings.
Production of GTOs started in the mid 1980s. A GTO is a thyristor that can be turned off by applying a current to the gate in the reverse direction to that required to turn it on.
The generation 7 IGBTs represent the latest IGBT chip technology. This new generation is specifically designed to match the requirements of motor drive applications. The IGBTs come with a significantly lower forward voltage drop and deliver optimized switching performance. Thanks to roughly 25% smaller chips, higher nominal currents can fit into existing power module packages.

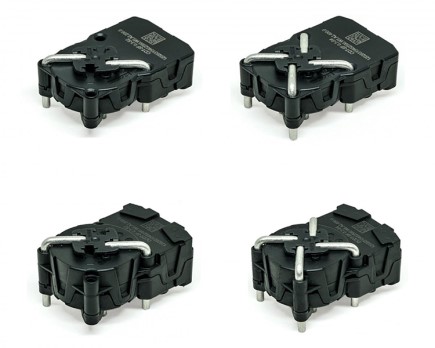

Measuring range up to 3× primary nominal (450 A pk measured for the 150 A nominal model (LZSR 150-P/SP1) 100, 150 & 200 A nominal models PCB mounting ASIC based Closed Loop Hall effect technology Low offset drift up to 3 ppm/K of VREF(7 times better than previous generation of C/L Hall Effect current transducers working with traditional Hall effect chip). Exceptional compact size for all ranges (37.75 × 48.2 × 19.4mm)
Clinton Parts plans on closing their doors by the end of 2019. With more than 80 man-years supporting Clinton Parts Kenny and Paul are ready to retire. May you guys have a relaxing new chapter ahead – one where you will have unlimited time enjoying your life. Happy Retirement!

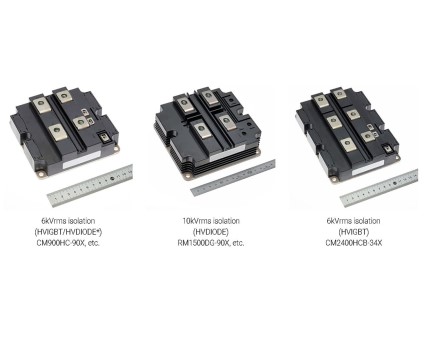

IGBT (Insulated Gate Bipolar Transistor) module is a device required for inverter use in many types of industrial equipment, and had driven the trend towards high currents and high voltage since 1990. The chip structure also evolved from a flat planar structure to a trench gate structure, and the CSTBT™ (Mitsubishi Electric's unique IGBT that makes use of the carrier cumulative effect) has enabled low loss and smaller size for industrial equipment. From the 5th generation IGBT, the lineup has included composite products*1 with a thin profile (NX type) in addition to the former external shape (standard type). From the S series (6th generation IGBT), there has been additionally offered the T/T1 series (7th generation IGBT), with low power loss and smaller size. Incorporates an inverter, 3-phase converter and brake circuit in a single package
Littelfuse Introduces 650V SiC Schottky Diodes with New Package Sizes, Current Ratings from 6A to 40A Perfect for enhancing efficiency, reliability and thermal management in power electronics applications
Dynex Semiconductor has a rich history in the design, development and production of High Power Semiconductors and Power Assemblies.

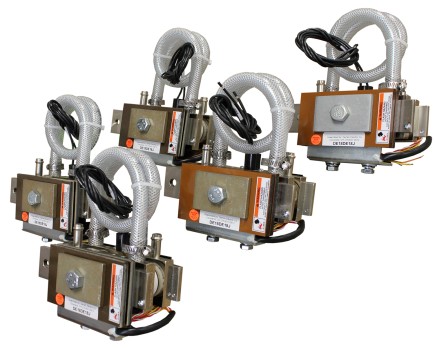

Since our founding in 1960, Darrah electric Company (DEC) has continued to lead the industry in the development of custom and standard power solutions. DEC Provides power conversion solutions to a variety of industries to include but not limited to; transportation, defense, aerospace and metal finishing with the most reliable custom and standard power solutions. This quality is reflected in the design, material, workmanship and operating performance of each product we build.

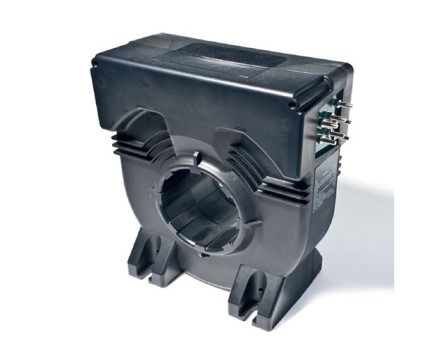

LEM is the market leader in providing innovative and high quality solutions for measuring electrical parameters. Its core products - current and voltage transducers - are used in a broad range of applications including drives & welding, renewable energies & power supplies, traction, high precision, conventional and green vehicle businesses. With higher accuracy and speed, the feedback signal from LEM transducers enables smoother control and energy consumption reduction of many electrical systems.
Heat pipes are used to carry heat over a distance with very low thermal resistance. This is very helpful when small or distant heat sources need to be dissipated over a larger area or moved to a remote heat exchanger. Heat pipes are a Fluid Phase Change application, often referred to as “re-circulating,” because they use a closed loop to transfer heat quickly through evaporation and condensation within the heat pipe.

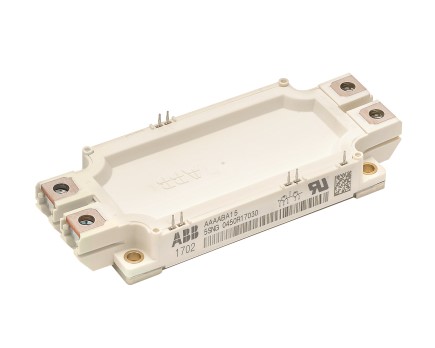

Insulated gate bipolar transistor (IGBT) and diode modules with SPT and SPT+ chips. ABB’s IGBT power modules are available from 1700 to 6500 volt as single IGBT, dual/phase-leg IGBT, chopper and dual diode modules. The high-power HiPak IGBT modules feature low losses combined with soft-switching performance and record-breaking Safe Operating Area (SOA).
