MOSFET (Metal Oxide Semiconductor Field Effect Transistor) has a proven record of providing low current and low withstanding voltage in power devices that require high-speed switching, voltage driving and low loss. The use of a trench gate structure, enabled by submicron technology, radically reduces the low on-resistance (the resistance value in the region where the drain current flows between the drain and the source) compared to a planar structure.

The single switch 3600A IGBT module, DIM3600ESM17-PT500 is the latest addition to the Dynex 1.7kV IGBT range. The module is designed with Trench gate Generation 5 chip technology and designed in our latest E2 package. The highly efficient device has a wide reverse bias safe operating area (RBSOA) plus 10μs short circuit withstand. In addition, the module has a chip junction temperature that works reliably within an operating range from -40°C to a maximum of 150°C. This device is highly efficient and optimized for applications such as; traction drives, power supply, high voltage converters, motor controllers and choppers requiring high thermal cycling capability. The DIM3600ESM17-PT500 incorporates an electrically isolated base plate and low inductance construction, enabling circuit designers to optimize circuit layouts and utilize grounded heat sinks for safety.

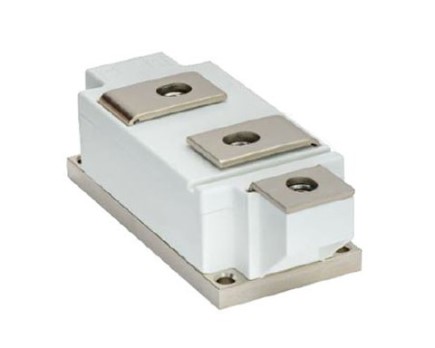

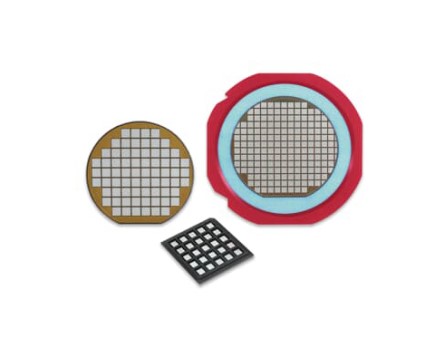

Hitachi ABB Power Grids' SPT (Soft Punch Through) chipsets and its improved versions with lower losses (SPT+ and SPT++) are available at 1200 and 1700 volt. They feature highest output power per rated ampere due to a moderate chip shrinkage and thus larger die area. Typical applications for 1200 volt are power converters for industrial drives, solar energy, battery backup systems (UPS) and electrical vehicles. Applications for 1700 volt include industrial power conversion & drives, wind turbines and traction. The newly introduced 1700 V SPT++ chipset is the world’s first 1700 V chipset that offers an operative junction temperature of up to 175 °C. This allows the module designer to increase the power density of power modules considerably.

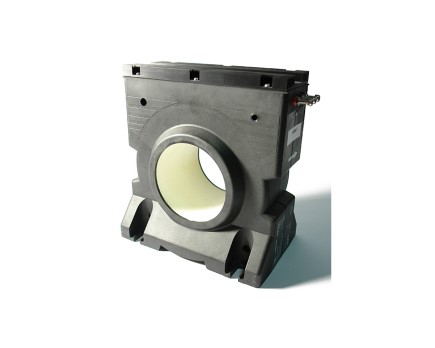

Closed Loop Hall effect. DC, AC pulse currents' measurements of 4000 ARMS nominal with galvanic isolation. To be panel mounted. Aperture 102 mm diameter for the primary conductor crossing. Excellent accuracy, good response time, Current output, -25°C to + 70°C. Dual supply +/- 24 V.

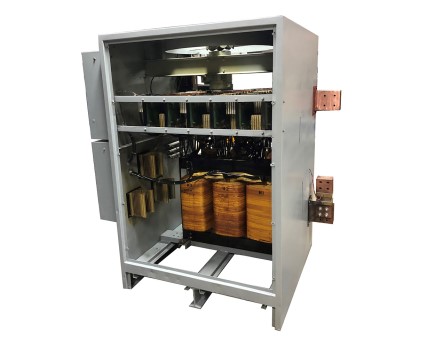

Used/Reconditioned DC Power Supplies are typically under 50% the cost of new rectifiers. Darrah offers various types of control in air and water cooled models. Rectifiers are cleaned, painted, inspected and repaired as needed. Rectifiers are full load, function, heat tested and are sold with a warranty.

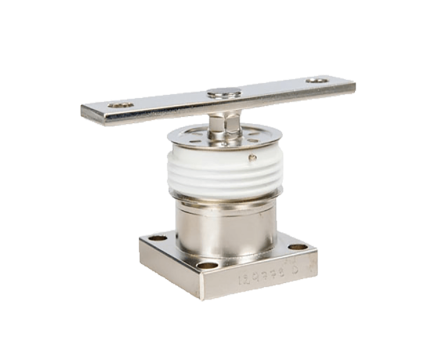

Dynex Flat Base Rectifier Diodes range from 3000V to 6000V at current ratings of 412A to 860A.FEATURES - Low losses for high efficiency - Hermetically sealed for long operational life - Easily mounted down with 4 M8 bolts on 46mm centres - Available with flying lead, full and half bar connections on request - Available anode to base and cathode to base - Selections available for parallel operation

Darrah Electric Company offers a wide variety of Semiconductor assemblies from standard off the shelf to completely custom solutions. In many cases, if complete assemblies are not available in stock, components are available for quick solutions and delivery. Find a standard or custom heat sink assembly in our full line for all common circuit configurations, including Diode/Rectifier, Thyristor/SCR, and IGBT circuits. Our experience with our product lines and the products we distribute allow us to offer practical and economical solutions to our customers so you can find the perfect heat sink assembly for your specific needs. Darrah engineering provides full 3D assembly drawings along with thermal calculations with our quotations. All heat sink assemblies are 100% tested prior to shipping. Full load testing with thermal data capture is available upon request for prototype or production products.

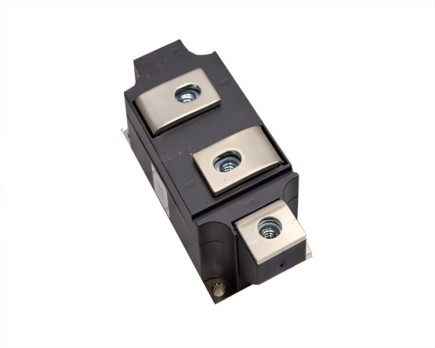

Hitachi ABB Power Grids’ diode and thyristor modules feature industry standard housings and very low losses together with the highest operating temperatures. They provide the ultimate in reliability and are the epitome of quality. Whether efficiently driving industrial motors, smoothly accelerating fans and pumps, or supply power to demanding applications.

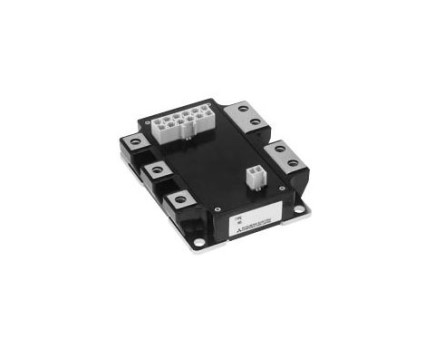

Mitsubishi Electric to Launch HV100 dual type X-Series HVIGBT Modules For extra powerful and efficient inverter systems in railways, electric power systems and more Mitsubishi Electric announced the coming launch of two new HV100 dual type X-Series HVIGBT modules for higher power, efficiency and reliability in inverter systems for large industrial equipment such as railways and electric power systems. The modules achieve industry-leading* dual type 600A current ratings with 10kVrms isolation voltage, believed to be unmatched among silicon HVIGBT modules rated at 3.3kV.

Darrah Electric Co provides various ratings and configurations of DC test fixtures to suit your requirements.
