Static Exciter De-excitation and Crowbar tester

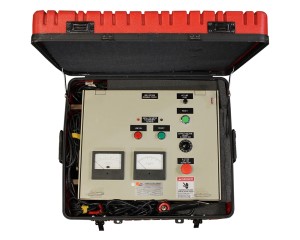

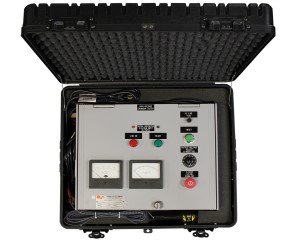

Darrah's Portable De-Excitation and Crowbar Tester for Static Exciters

Features of the DX5K-115A Tester
- AC Input: 120 Volt , 1 Phase, 50/60 Hertz, 18 Amp
- Manually adjustable 0-5000 volt DC output, to initiate operation of de-excitation and crowbar modules, with analog voltmeter and output jacks for remote DVM.
- 100 Amp DC follow through current to verify the module is conducting, measured with ammeter.
- Remote safety switch
- Remote 4” red safety strobe
- Rugged wheeled case with handle
- 24” wide x 14” deep x25” high, 95 pounds
