Published 02/06/2019

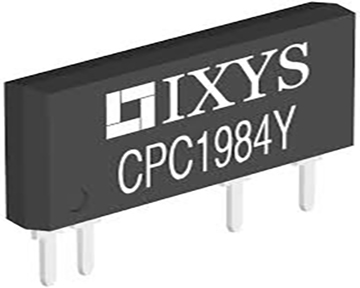

The all new CPC1984Y 600V, 1A Power SIP Relay Provides Up to 4000V Input-to-Output Isolation for High-Performance Switching

IXYS Integrated Circuits Division, now part of Littelfuse, Inc., introduced the CPC1984Y, a 600V, Normally Open Power SIP Relay, rated for up to 1A DC/1Arms continuous load current, twice the load current of the company’s most popular power relay. This high-reliability device uses optically coupled MOSFET technology to provide 4000Vrms of input-to-output isolation. In fact, the CPC1984Y SIP Relay offers the best combination of load voltage and load current available with a 4000Vrms isolation voltage. The optically coupled outputs, which employ IXYS ICD’s patented OptoMOS architecture, are controlled by a highly efficient infrared LED.
The CPC1984Y single-pole normally open (1-Form-A) 600V Solid State Power Relay has a 1ADC / 1Arms
continuous load current rating.
Patented OptoMOS® optically coupled MOSFET technology, controlled by a highly efficient infrared
LED, provides the CPC1984Y with 4000Vrms of input to output isolation.
The combination of low on-resistance and high load current handling capability makes this relay ideal for a variety of high performance switching applications.
Features
1ADC/1Arms Load Current
• 600VP Blocking Voltage
• 4000Vrms Input/Output Isolation
• Power SIP Package
• High Reliability
• Low Drive Power Requirements
• Arc-Free With No Snubbing Circuits
• No EMI/RFI Generation
• Flammability Rating UL 94 V-0

Click here for Data Sheet

Darrah Electric is an authorized distributor for IXYS. Click here to see our inventory or call our sales for questions at (216) 631-0912
