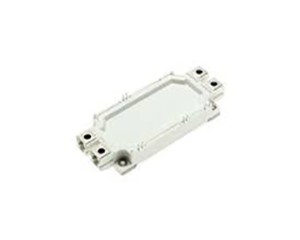

1.2kV & 1.7kV Gen5 Trench Gate M1 IGBT Modules

The DIM450M1HS12-PB500, DIM600M1HS12-PC500 and DIM450M1HS17-PA500 are trench, insulated gate bipolar transistor (IGBT) modules with enhanced field stop and implantation technology.
The IGBT modules have a wide reverse bias safe operating area (RBSOA) plus 10μs short circuit withstand.
The M1 modules are designed to scale 152 x 62 x 11mm, and weigh 345g.
The modules have a chip Junction temperature operating range from -40°C to a maximum of 150°C. Suitable for applications within the electric vehicle, industrial, renewable and traction markets.
The modules incorporate an electrically isolated base plate and low inductance construction enabling circuit designers to optimize circuit layouts and utilize grounded heat sinks for safety.

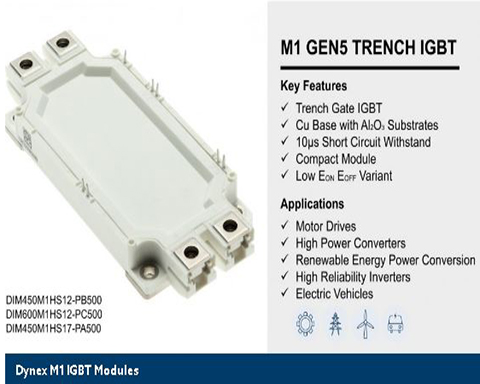

Key Features:
• Trench Gate IGBT
• Cu Base with Enhanced Al2O3 Substrates
• High Thermal Cycling Capability
• 10µs Short Circuit Withstand
• Low EON EOFF Variant
• Compact Module

• Motor Drives
• Power Charging Equipment
• Renewable Energy Power Conversion
• Electric Vehicles

The Power line range of high power modules includes half bridge, chopper, dual, single and bi-directional switch configurations covering voltages from 1200V to 6500V and currents up to 3600A.

Click here for DIM450M1HS12-PB500 Data Sheet

Click here for DIM600M1HS12-PC500 Data Sheet

Click here for DIM450M1HS17-PA500 Data Sheet

Darrah Electric is a proud Authorized Distributor of Dynex Semiconductor Products

Click here to see our inventory or contact us for lead times and/or pricing at (216) 631-0912.
