Published 11/14/2018

4600A, 5000V
270kA Pulse Current Capability
20kA/mS di/dt Pulse Capability
Low Power Gate Driver

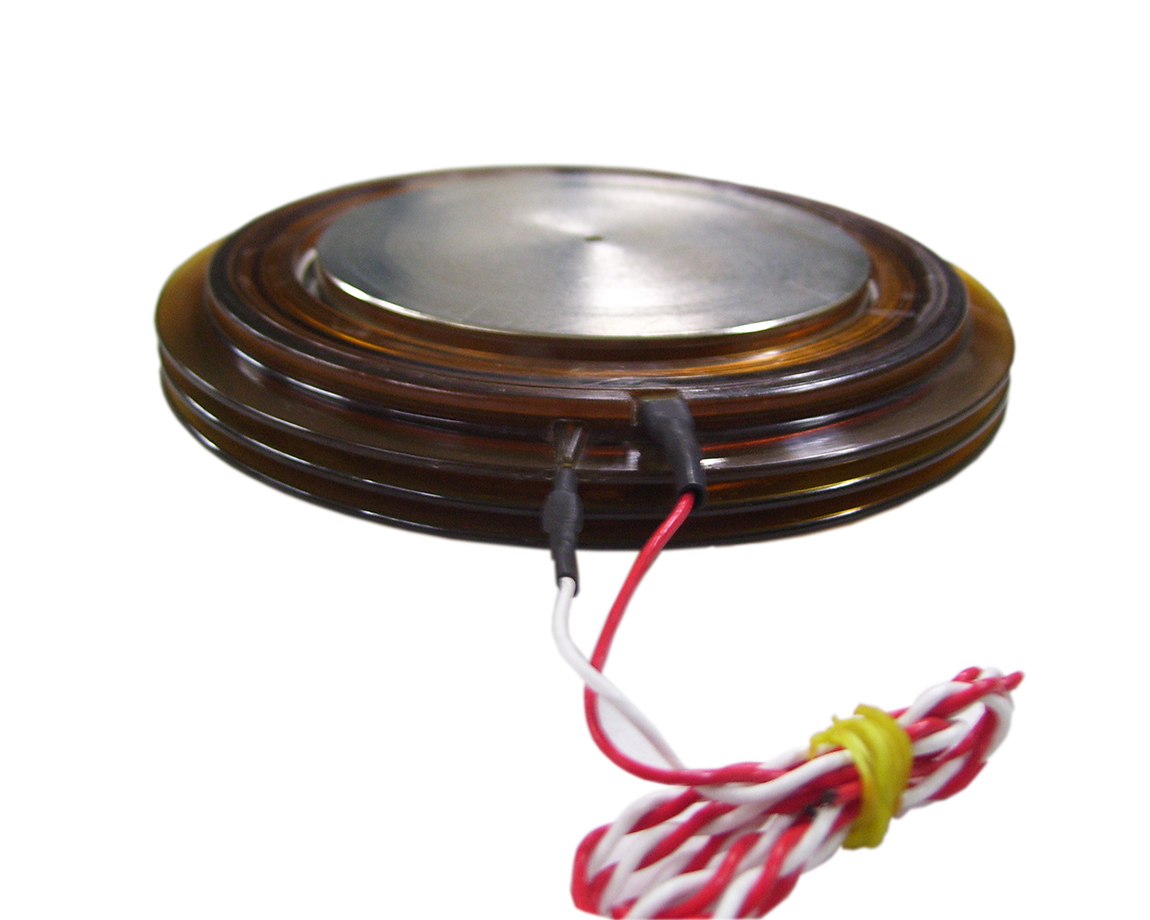

The SPT411A thyristor is enhanced for pulse power applications. It structures a highly interdigitated cathode/pilot gate combinations which empower extremely high pulse power di/dt driven with low gate power.
The design develops a revolutionary “Light Silicon Sandwich” or LSS technology, a new conclusion technique which removes substantial refractory metal as a substrate but still employs the alloyed anode interface essential for high surge current duty. This light weight plastic platform allows the insertion of liquid cooled chillers. Copper inserts can be supplied for adjoining commercially available flat surfaced heat dissipaters.

Click here to download the Datasheet

Click here to download the Application Notes

Click here to view our Ruttonsha product offerings or call our sales for questions or lead times at (216) 631- 0912
