Published 06/20/2019

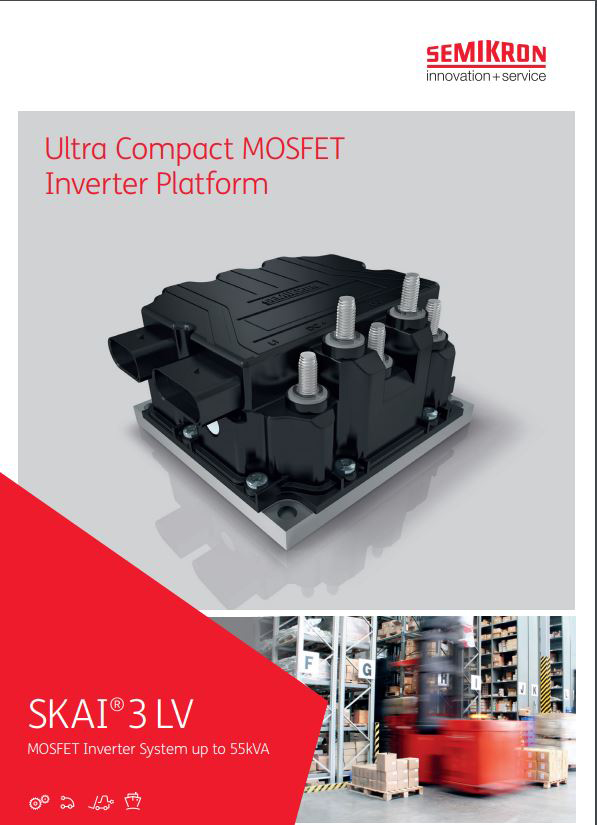

Ultra Compact MOSFET Inverter Platform
SKAI 3 LV is the 3rd generation of industrial MOSFET inverters and constitutes the 7th generation of MOSFET inverter technology manufactured by SEMIKRON, with more than 1.5 Million MOSFET inverters in the field. The 3rd generation is a platform concept that offers standard design versions or can be customized to meet your needs. The converter connects easily to a customer control board for quick and easy designing, while leaving the control to the customer.
3-phase MOSFET inverter system up to 55kVA
- For material handling and battery powered vehicles
- Voltage, current and temperature sensors
- Gate driver with protection
- Low inductance, low loss power section
- DC link capacitors
- Air and plate cooling
- Easy-to-use gate driver interface
- Platform for customized designs
SKAI® 3 LV Key Features
- For compact designs
- 30kVA/l power density
- Vbattery: 24V up to 160V
- 600Arms peak current during acceleration
- Easy-to-use gate driver
- IP66 enclosure
Design platform
- Power-module with easy-to-use gate driver
- Customer control board for integration into IP66 enclosure
- Customizable
- Design-in kit available
Power semiconductor technology
- Pressure rather than solder contact power connections
- No fatigue due to different material coefficients of thermal expansion
- Spring contacts for auxiliary connections replace solder joints for shock and vibration ruggedness

Click here to download flyer

Darrah Electric Company is an authorized distributor for SEMIKRON. Click here to see our inventory or call our sales for lead times or questions at (216) 631-0912
