Published 11/06/2019

Outline
IPM (Intelligent Power Module) is a high-performance module that mounts a dedicated drive circuit for drawing greater performance from an IGBT chip, and it provides a custom IC for executing self-protection functions (short circuit, supply under voltage, and over temperature).
Main Applications
General purpose inverters/AC servo/CVCF/solar power generation/wind power generation/elevators/UPS
New Products
G1 Series
- Power loss has been reduced with the introduction of the 7th-generation IGBT produced using CSTBT™*1 and a diode incorporating a RFC*2 structure that contributes to reducing the power consumed in inverters

- The new resin-insulated metal baseplate, originally introduced in 7th-generation IGBT modules, eliminates the solder-attached section, increasing the thermal cycle lifetime and improving inverter reliability

- In addition to the built-in functions of the previous product,*3 automatic switching speed control, error detection function contribute to lowering inverter loss and shortening design time

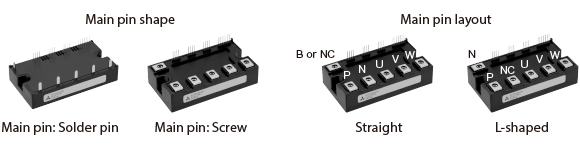

"A" package main pin shape and layout

For the "A" package 6-in-1 (CG1A) main pin shape, select either solder pin or screw type for the pin layout, select either straight or L-shaped



 IPMs(Intelligent Power Modules) G1 series

Part Number VCES (V) IC(A) Connection Viso (Vrms)
PM100CG1A065 650 100 6-PACK 2500
PM100CG1AP065 650 100 6-PACK 2500
PM100CG1APL065 650 100 6-PACK 2500
PM100CG1B065 650 100 6-PACK 2500
PM100CG1B120 1200 100 6-PACK 2500
PM100CG1C120 1200 100 6-PACK 2500
PM100RG1B065 650 100 7-PACK 2500
PM100RG1B120 1200 100 7-PAC K 2500
PM100RG1C120 1200 100  7-PACK 2500
PM150CG1B065  650  150  6-PACK 2500
PM150CG1C120  1200  150  6-PACK 2500
PM150RG1B065  650  150  7-PACK 2500
PM150RG1C120  1200  150  7-PACK 2500
PM200CG1B065 650 200  6-PACK   2500
PM200CG1C065  650  200  6-PACK 2500
PM200CG1C120   1200 200  6-PACK 2500
PM200RG1B065  650  200  7-PACK  2500
PM200RG1C065  650  200  7-PACK  2500
PM200RG1C120  1200  200  7-PACK  2500
PM25CG1A120  1200  25  6-PACK  2500
PM25CG1AL120  1200 25  6-PACK  2500
PM25CG1AP120  1200  25  6-PACK  2500
PM25CG1APL120  1200 25  6-PACK 2500
PM25CG1B120  1200  25 6-PACK  2500
PM25RG1A120  1200 25  7-PACK  2500
PM25RG1AP120  1200  25  7-PACK  2500
PM25RG1B120   1200 25  7-PACK  2500
PM300CG1C065   650  300 6-PACK  2500
PM300RG1C065   650 300  7-PACK  2500
PM35CG1A120  1200  35  6-PACK  2500
PM35CG1AL120   1200 35  6-PACK  2500
PM35CG1AP120  1200  35  6-PACK  2500
PM35CG1APL120   1200 35  6-PACK  2500
PM35CG1B120  1200  35  6-PACK  2500
PM35RG1AP120  1200  35  7-PACK  2500
PM35RG1B120   1200 35  7-PACK  2500
PM450CG1C065  650  450  6-PACK  2500
PM450RG1C065  650  450  7-PACK  2500
PM50CG1A065  650  50  6-PACK  2500
PM50CG1A120  1200  50  6-PACK  2500
PM50CG1AL065  650 50  6-PACK  2500
PM50CG1AL120   1200 50  6-PACK 2500
PM50CG1AP065  650  50  6-PACK  2500
PM50CG1AP120  1200  50  6-PACK  2500
PM50CG1APL065   650 50  6-PACK  2500
PM50CG1APL120  1200  50  6-PACK  2500
PM50CG1B065  650  50  6-PACK  2500
PM50CG1B120  1200 50  6-PACK  2500
PM50RG1A065  650  50  7-PACK  2500
PM50RG1AP065  650  50  7-PACK  2500
PM50RG1B065   650 50  7-PACK  2500
PM50RG1B120  1200  50  7-PACK  2500
PM75CG1A065 650  75  6-PACK  2500
PM75CG1AL065  650 75  6-PACK  2500
PM75CG1AP065  650  75  6-PACK  2500
PM75CG1APL065  650  75 6-PACK  2500
PM75CG1B065  650  75  6-PACK 2500
PM75CG1B120  1200  75  6-PACK  2500
PM75RG1A065 650 75 7-PACK 2500
PM75RG1AP065 650 75 7-PACK 2500
PM75RG1B065 650 75 7-PACK 2500
PM75RG1B120 1200 75 7-PACK 2500

Click here to view L1, S1, V1, PV and/or L seres IPM's

Darrah Electric is an authorized distributor for Mitsubishi Electric. Contact us for Data Sheets, lead times and/or pricing at 800-621-0014.
