Published 08/01/2019

Mitsubishi Electric IGBT Modules
IGBT (Insulated Gate Bipolar Transistor) module is a device required for inverter use in many types of industrial equipment, and had driven the trend towards high currents and high voltage since 1990.
The chip structure also evolved from a flat planar structure to a trench gate structure, and the CSTBT™ (Mitsubishi Electric's unique IGBT that makes use of the carrier cumulative effect) has enabled low loss and smaller size for industrial equipment.
From the 5th generation IGBT, the lineup has included composite products*1 with a thin profile (NX type) in addition to the previous external shape (standard type).
From the S series (6th generation IGBT), there has been additionally offered the T/T1 series (7th generation IGBT), with low power loss and smaller size.

New Products
T/T1-Series

• New modules equipped with three-phase converter, inverter, and brake circuit(CIB), contributes to simplifying design for inverter systems
• CIB modules contribute to compact inverter systems by reducing package size by 36% compared to the Mitsubishi Electric's existing module.(CIB)
• Power loss has been reduced with the introduction of the 7th-generation IGBT produced using CSTBT™*2 and a diode incorporating a relaxed field of cathode (RFC) structure
• The new structure introduced eliminates the solder-attached section, increasing the thermal cycle lifetime, which contributes to improving the reliability of inverters
• The introduction of press-fit pins and PC-TIM*1 contribute to simplifying the assembly process for inverters

Power Modules for 3-level inverters

• Compatible with 3-level inverters, reducing power consumption approx. 30%*1
• New package developed*2 contributing to lower inductance and simplified inverter circuit structure
• IGBT specifications optimized*3 with development of new compact, low-inductance package
• 4-in-1*4 and 1-in-1/2-in-1*5 lineup contributes to improved compactness and freedom in inverter design

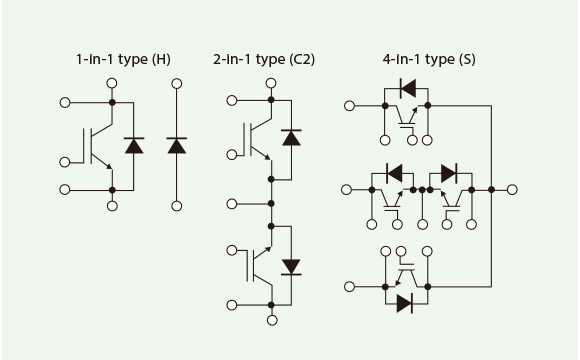

Internal circuit diagram

Darrah Electric is an authorized distributor for Mitsubishi Electric. Contact us for Data Sheets, lead times and/or pricing at 800-621-0014.
