Published 10/07/2019

Liquid cooling is just like forced convection in that fluid is forced through the system by an external source like a pump. While most applications use water or water/glycol mixtures as the primary fluids, any liquid can be used, including liquid refrigerants, fluorocarbons, gasoline, hydraulic fluid, or oil to name a few. Liquids are more efficient then forced air because the specific heat of liquid is higher than the specific heat of air and just like forced air cooling, liquid cooling is most efficient if the fluid is turbulent. However, turbulent flow puts a strain on the pump.

                                                                      Standard Liquid Cold Plates

In addition to the endless opportunities of custom liquid cold plates. Wakefield-Vette offers a large family of standard off the shelf product.

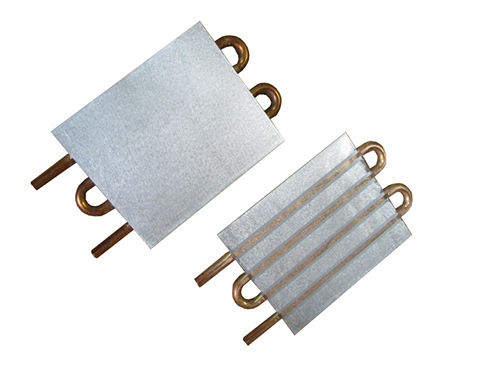

                                                                             Exposed Tube
Wakefield- Vette’s exposed tube liquid cold plates ensure minimum thermal resistance between the power device and the cold plate by placing the coolant tube in direct contact with the power device’s base. Direct contact reduces the number of thermal interfaces between device and fluid thus increasing performance for the application.
                                                                           Key Characteristics
                                                           Economical extruded base with continuous copper tube
                                                                    Continuous copper tube reduces leakage
                                                             Tube and base bonded by highly conductive epoxy
                                                       Numerous flow paths for various location of heat sources

                                                                         Exposed Tube Standards

 Click Part for Data Sheet

 Part Number Description   Length in Inches
120455   2- Pass Coldplate  2.25
120456  4- Pass Coldplate  6.00
120457   4- Pass Coldplate  12.00
120458   6- Pass Coldplate  6.00
120459 6- Pass Coldplate 12.00
120460 6- Pass Coldplate 24.00

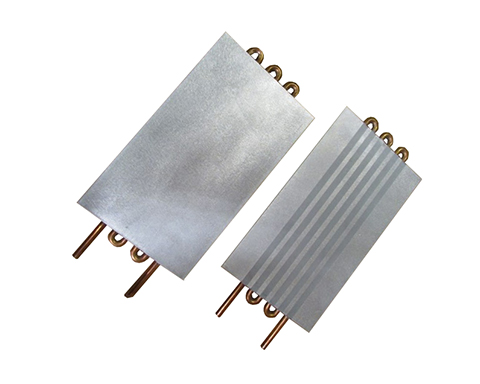

                                                                          Full Buried Tube

Wakefield- Vette’s fully buried tube liquid cold plates have the ability to cool both sides of the cold plate because of it’s positioning within the base plate. Another key feature of the fully buried tube is that it is not exposed to the outside environment. Some engineers prefer the epoxy layer above the tube to protect the tube from leakage.

                                                                                 Key Characteristics

                                                    Economical extruded base with continuous copper tube
                                                              Continuous copper tube reduces leakage
                                                       Copper Tube is not exposed to external environment
                                                                    Tube under high level of conductive epoxy
                                                        Numerous flow paths for various location of heat sources

                                                                              Fully Buried Tube Standards                                                                                          Click Part for Data Sheet

Part Number Description Length in Inches
120959 2- Pass Coldplate 2.25
120960 4- Pass Coldplate 6.00
120961 4- Pass Coldplate 12.00
120962 6- Pass Coldplate 6.00
120963 6- Pass Coldplate 12.00
120964 6- Pass Coldplate 24.00

                                                                                 Rolled Tube (180 Series)

Wakefield- Vette’s rolled tube liquid cold plates are usually the most cost effective liquid cold plate solutions. The key attribute for this line of standard cold plates is that the liquid flow is contained in a continuous tube. These standards cold plates come in 2 and 4 pass versions.

                                                                                Key Characteristics

                                                      Economical extruded base with continuous cooper tube
                                                                  Continuous cooper tube reduces leakage
                                                     Numerous flow paths for various location of heat sources

                                                                                Rolled Tube Standards

Click Part for Data Sheet



Part Number Description Length in Inches
180-10-6C 2- Pass (3" Wide) 6.0
180-10-12C 2- Pass (3" Wide) 12.0
180-10-24C 2- Pass (3" Wide) 24.0
180-11-6C 2- Pass (5" Wide) 6.0
180-11-12C 2- Pass (5" Wide) 12.0
180-11-24C 2- Pass (5" Wide) 24.0
180-12-6C 4- Pass (7.75" Wide) 6.0
180-12-12C 4- Pass (7.75" Wide) 12.0
180-12-24C 4- Pass (7.75" Wide) 24.0
180-20-6C 4- Pass (5.50" Wide) 6.0

Darrah Electric is an authorized distributor for Wakefield-Vette. For pricing and/or lead times contact us at 800-621-0014.
