Published 01/22/2019

LEMs transducer families are called; LXS, LXSR, LES, LESR, LKSR, LPSR. Each transducer can be mounted on printed circuit boards for non-intrusive and isolated measurements of DC, AC and pulsed nominal currents from 1.5A to 50A thanks to a multi-range configuration. These closed-loop current transducers are based on a LEM custom proprietary patented Hall Effect ASIC, allowing them to perform at the level of fluxgate transducers.

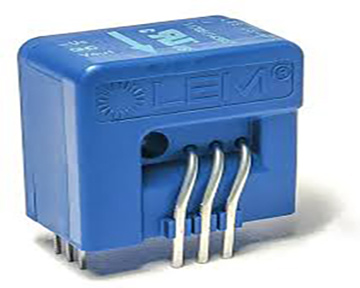

The LXS series Features
- Closed loop multi-range current transducer
- Voltage output
- Unipolar supply voltage
- Compact design for PCB mounting.
Advantages
- Very low offset drift
- Very good dv/dt immunity
- LTS footprint compatible
- Extended measuring range for unipolar measurement.
Applications
- AC variable speed and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
- Solar inverters.
Standards
- IEC 61800-1: 1997
- IEC 61800-2: 2015
- IEC 61800-3: 2004
- IEC 61800-5-1: 2007
- IEC 62109-1: 2010
- IEC 62477-1: 2012
- UL 508:2013

Click here for LXS series Data sheet

Darrah Electric is an authorized distributor for LEM. Click here to see our inventory or call our sales for questions at (216) 631-0912
