Insulated gate bipolar transistor (IGBT) and diode modules with SPT and SPT+ chips

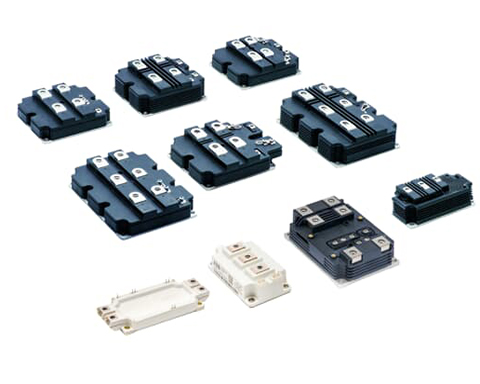

ABB’s IGBT power modules are available from 1700 to 6500 volt as single IGBT, dual / phase-leg IGBT, chopper and dual diode modules. The high-power HiPak IGBT modules feature low losses combined with soft-switching performance and record-breaking Safe Operating Area (SOA). The newly introduced 62Pak fast switching medium-power IGBT modules feature lowest switching losses, full 175 °C operation with full square SOA and standard package allowing drop-in replacement.
For more information click on the part numbers.
| Part Number | Voltage VCES (V) |
Current IC (A) |
Type | Package |
| 1.7 kV | ||||
| 5SNG 0150Q170300 | 1700 | 2 x 150 | Phase leg IGBT | 62Pak |
| 5SNG 0200Q170300 | 1700 | 2 x 200 | Phase leg IGBT | 62Pak |
| 5SNG 0300Q170300 | 1700 | 2 x 300 | Phase leg IGBT | 62Pak |
| 5SNG 0225R170300 New | 1700 | 2 x 225 | Phase leg IGBT | LoPak1 |
| 5SNG 0300R170300 New | 1700 | 2 x 300 | Phase leg IGBT | LoPak1 |
| 5SNG 0450R170300 New | 1700 | 2 x 450 | Phase leg IGBT | LoPak1 |
| 5SND 0800M170100 | 1700 | 2 x 800 | Dual IGBT | HiPak |
| 5SNE 0800M170100 | 1700 | 800 | Chopper | HiPak |
| 5SNG 1000X170300 | 1700 | 2 x 1000 | Phase leg IGBT | LinPak |
| 5SNE 1600E170300 | 1700 | 1600 | Chopper | HiPak |
| 5SNA 1600N170100 | 1700 | 1600 | Single IGBT | HiPak |
| 5SNA 1600N170300 | 1700 | 1600 | Single IGBT | HiPak |
| 5SNA 1800E170100 | 1700 | 1800 | Single IGBT | HiPak |
| 5SNA 2400E170100 | 1700 | 2400 | Single IGBT | HiPak |
| 5SNA 2400E170305 | 1700 | 2400 | Single IGBT | HiPak |
| 5SNE 2400E170300 | 1700 | 2400 | Chopper | HiPak |
| 5SNA 2400N170300 | 1700 | 2400 | Single IGBT | HiPak |
| 5SNA 3600E170300 | 1700 | 3600 | Single IGBT | HiPak |
| 5SLA 3600E170300 | 1700 | 3600 | Single diode | HiPak |
Part Number |
Voltage VCES (V) |
Current IC (A) |
Type | Package |
| 3.3 kV | ||||
| 5SNG 0250P330305 | 3300 | 2x250 | Phase leg IGBT | HiPak |
| 5SNG 0450X330300 | 3300 | 2 x 450 | Phase leg IGBT | LinPak |
| 5SLG 0500P330300 | 3300 | 2 x 500 | Phase leg diode | HiPak |
| 5SND 0500N330300 | 3300 | 2 x 500 | Dual IGBT | HiPak |
| 5SNE 0800E330100 | 3300 | 800 | Chopper | HiPak |
| 5SNA 0800N330100 | 3300 | 800 | Single IGBT | HiPak |
| 5SNE 1000E330300 | 3300 | 1000 | Chopper | HiPak |
| 5SLD 1000N330300 | 3300 | 2 x 1000 | Dual diode | HiPak |
| 5SNA 1000N330300 | 3300 | 1000 | Single IGBT | HiPak |
| 5SLD 1200J330100 | 3300 | 2 x 1200 | Dual diode | HiPak |
| 5SNA 1200E330100 | 3300 | 1200 | Single IGBT | HiPak |
| 5SNA 1200G330100 | 3300 | 1200 | Single IGBT | HiPak |
| 5SNA 1500E330305 | 3300 | 1500 | Single IGBT | HiPak |
| 5SNA 1800E330400 | 3300 | 1800 | Single IGBT | HiPak |
| Part Number | Voltage VCES (V) |
Current IC (A) |
Type | Package |
| 4.5 kV | ||||
| 5SNG 0150P450300 | 4500 | 2 x 150 | Phase leg IGBT | HiPak |
| 5SLG 0600P450300 | 4500 | 2 x 600 | Phase leg diode | HiPak |
| 5SLD 0650J450300 | 4500 | 2 x 650 | Dual diode | HiPak |
| 5SNA 0650J450300 | 4500 | 650 | Single IGBT | HiPak |
| 5SNA 0800J450300 | 4500 | 800 | Single IGBT | HiPak |
| 5SNE 0800G450300 | 4500 | 800 | Chopper | HiPak |
| 5SLD 1200J450350 | 4500 | 2 x 1200 | Dual diode | HiPak |
| 5SNA 1200G450300 | 4500 | 1200 | Single IGBT | HiPak |
| 5SNA 1200G450350 | 4500 | 1200 | Single IGBT | HiPak |
| Part Number | Voltage VCES (V) |
Current IC (A) |
Type | Package |
| 6.5 kV | ||||
| 5SNA 0400J650100 | 6500 | 400 | Single IGBT | HiPak |
| 5SNA 0500J650300 | 6500 | 500 | Single IGBT | HiPak |
| 5SLD 0600J650100 | 6500 | 2 x600 | Dual diode | HiPak |
| 5SNA 0600G650100 | 6500 | 600 | Single IGBT | HiPak |
| 5SNA 0750G650300 | 6500 | 750 | Single IGBT | HiPak |
| 5SNA 1000G650300 New | 6500 | 1000 | Single IGBT | HiPak |
Darrah Electric is a Value Added Reseller of ABB Semiconductors.
We offer full product and application support with extended warranty options.
Click here to see our inventory or contact us for samples, lead times and/or pricing at (216) 631-0912.
