Published 09/23/2019

Dynex Phase Control Thyristors
Dynex Semiconductor’s phase control thyristors can be used in any application requiring energy efficiency, switching at line frequencies and not requiring the switch to have turn-off capabilities.

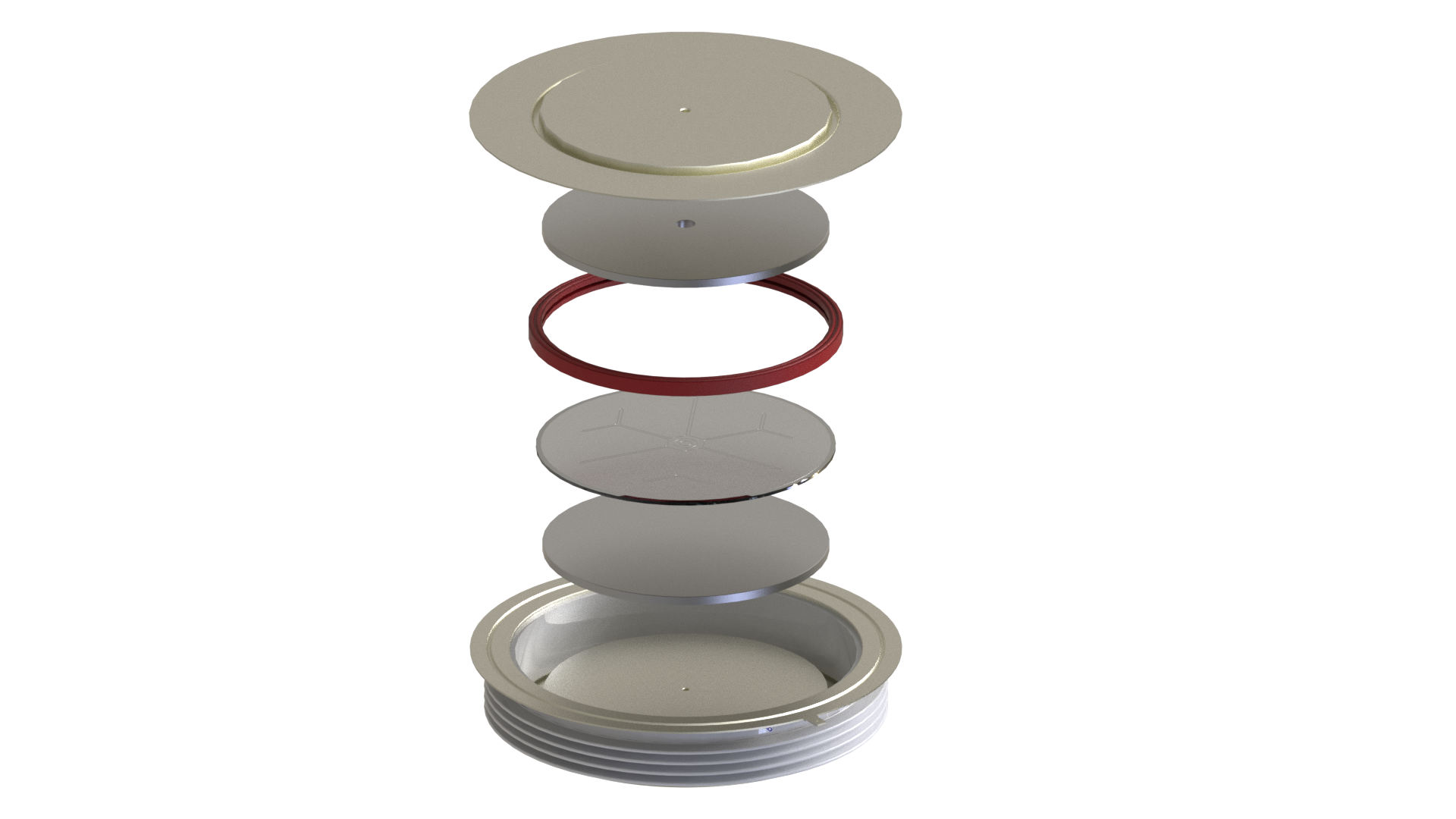

Product Introduction
The Dynex Phase Control Thyristor is used in DC drives, Static Transfer Switches, Frequency Converters, Line Commutated HVDC Converters, Controlled Rectifiers, Static VAR compensators, in fact, any application requiring energy efficiency, switching at line frequencies and not requiring the switch to have turn-off capabilities.
Dynex Semiconductor’s phase control thyristors are produced in both Lincoln, England and Zhuzhou, China. Development continues to produce designs with lower losses, higher blocking voltages, higher current capability and devices tailored for particular applications.
Application
Thyristors are typically used in AC to DC converters (Rectifiers) which employ phase control to vary the average voltage on the output of the converter or switch the AC supply on and off. Operating at line frequencies where switching losses are small, the low conduction losses of phase control thyristors make for high system efficiency. Voltages range from 1200V used with domestic supplies to 8.5kV for medium voltage applications. Their high overload capability makes them ideally suitable for fuseless applications.
Product Features
• Current ratings from 370A average to 7610A average
• Voltage ratings from 1400V to 8500V
• Full blocking voltage capability at line frequencies from -40°C to + 125°C
• High surge current capability
• High di/dt turn-on capability
• High dv/dt capability
• High DC blocking stability
• Low conduction losses
• Low thermal resistance
• Good pick up performance for parallel operation

For downloading and printing of data sheets in PDF format, click on the part numbers.



Part Number   UP TO 1400V

VDRM (V)

VRRM (V)

IT (AV) at TC= 60°C (A)

ITSM at Tvj VR = 0 (kA)

dV/dt (V/us)

Non rep.dI/dt (A/us)

Rth(j-c) (°C/W)

Outline Type Code

Flange OD / Contact OD / Height (mm)

Clamping Force (kN) min- max

DCR470T

1400

1400

470

6.3

1000

1000

0.08

T

42 / 19 / 13.5

4 - 6

DCR780E14

1400

1400

780

9.1

1000

1000

0.041

E

42 / 25 / 14.5

4 - 6

DCR950D14

1400

1400

950

12.8

1000

1000

0.035

D

47 / 29 / 14.5

8 - 12

DCR1010G14

1400

1400

1010

15

1000

1000

0.035

G

58 / 35 / 26.5

12 - 18

DCR1910F14

1400

1400

1919

26

1000

1000

0.02

F

75 / 47 / 26.5

18 - 26

DCR2150X14

1400

1400

2150

29

1000

1000

0.018

X

85 / 53 / 26.5

26 - 34

DCR2980C14

1400

1400

2980

47

1000

1000

0.0125

C

100 / 63 / 26.5

40 - 50

DCR3710V14

1400

1400

3710

60

1000

1000

0.01

V

110 / 73 / 26.5

50 - 62

























Part Number  UP TO 1800V



VDRM (V) VRRM (V) IT (AV) at TC= 60°C (A) ITSM at Tvj VR = 0 (kA) dV/dt (V/us) Non rep.dI/dt (A/us) Rth(j-c) (°C/W) Outline Type Code Flange OD / Contact OD / Height (mm) Clamping Force (kN) min- max

DCR370T18

1800

1800

370

5

1000

1000

0.08

T

42 / 19 / 13.5

4 - 6

DCR720E18

1800

1800

720

8.3

1000

1000

0.041

E

42 / 25 / 14.5

4 - 6

DCR860D18

1800

1800

860

11.5

1000

1000

0.035

D

47 / 29 / 14.5

8 - 12

DCR960G18

1800

1800

960

14

1000

1000

0.035

G

58 / 35 / 26.5

12 - 18

DCR1710F18

1800

1800

1710

25

1000

1000

0.02

F

75 / 47 / 26.5

18 - 26

DCR1800F18

1800

1800

1800

32

1000

1000

0.02

F

75 / 47 / 26.5

18 - 26

DCR1970X18

1800

1800

1970

28

1000

1000

0.018

X

85 / 53 / 26.5

26 - 34

DCR2830C18

1800

1800

2830

45

1000

1000

0.0125

C

100 / 63 / 26.5

40 - 50

DCR3400V18

1800

1800

3400

60

1000

1000

0.01

V

110 / 73 / 26.5

50 - 62




 Part Number UP TO 2400V

 VDRM (V)

 VRRM (V)

 IT (AV) at TC= 60°C (A)

 ITSM at Tvj VR = 0 (kA)

 dV/dt (V/us)

 Non rep.dI/dt (A/us)

 Rth(j-c) (°C/W)

 Outline Type Code

 Flange OD / Contact OD / Height (mm)

 Clamping Force (kN) min- max

DCR1080G22

2200

2200

1083

14.4

1500

500

0.0268

G

57 / 34 / 26.5

10 - 13

DCR4440W22

2200

2200

4440

64.5

1000

1000

0.07

W

120 / 84 / 26.5

62 - 78

DCR5900A22

2200

2200

5900

80

1000

1000

0.0057

A

150 / 100 / 35

74 - 91

DCR6430M22

2200

2200

6430

80

1000

1000

0.005

M

150 / 100 / 26.5

80 - 100

DCR590E24

2400

2400

590

7.8

1000

1000

0.041

E

42 / 25 / 14.5

4 - 6

DCR750D24

2400

2400

750

10

1000

1000

0.035

D

47 / 29 / 14.5

8 - 12

DCR1700X24

2400

2400

1700

23

1000

1000

0.018

X

85 / 53 / 26.5

26 - 34

DCR2360C24

2400

2400

2360

35

1000

1000

0.0125

C

100 / 63 / 26.5

40 - 50

DCR3060V24

2400

2400

3060

45

1000

1000

0.01

V

110 / 73 / 26.5

50 - 62
























Part Number UP TO 3000V VDRM (V) VRRM (V) IT (AV) at TC= 60°C (A) ITSM at Tvj VR = 0 (kA) dV/dt (V/us) Non rep.dI/dt (A/us) Rth(j-c) (°C/W) Outline Type Code Flange OD / Contact OD / Height (mm) Clamping Force (kN) min- max

DCR850G26

2600

2600

850

11

1000

1000

0.035

G

58 / 35 / 26.5

12 - 18

DCR960G28

2800

2800

960

13

1500

500

0.0268

G

57 / 34 / 26.5

10 - 13

DCR1560F26

2600

2600

1560

24

1000

1000

0.02

F

75 / 47 / 26.5

18 - 26

DCR1610F28

2800

2800

1610

21.5

1500

1000

0.0184

F

73 / 47 / 26.5

22 - 25

DCR2060C28

2800

2800

2060

30

1000

1000

0.0125

C

100 / 63 / 26.5

40 - 50

DCR2760V28

2800

2800

2760

43

1000

1000

0.01

V

110 / 73 / 26.5

50 - 62

DCR4590B28

2800

2800

4590

65

2000

500

0.007

B

120 / 84.6 / 34.87

68 - 84

DCR4910W28

2800

2800

4910

65

2000

500

0.00631

W

120 / 84 / 26.5

68 - 84

DCR5320A28

2800

2800

5320

75

1000

250

0.0057

A

150 / 100 / 35

80 - 100

DCR5900A28

2800

2800

5900

79

2000

250

0.00603

A

150 / 100 / 35

80 - 100

DCR5790M28

2800

2800

5790

75

1000

1000

0.005

M

150 / 100 / 26.5

80 - 100

DCR7610H28

2800

2800

7610

105

1000

1000

0.004

H

172 / 110 / 35

110 - 130

DCR780G30

3000

3000

780

10.5

1000

1000

0.035

G

58 / 35 / 26.5

12 - 18

DCR1460F30

3000

3000

1460

23

1000

1000

0.02

F

75 / 47 / 26.5

18 - 26

























Part Number UP TO 3400V

VDRM (V) VRRM (V) IT (AV) at TC= 60°C (A) ITSM at Tvj VR = 0 (kA) dV/dt (V/us) Non rep.dI/dt (A/us) Rth(j-c) (°C/W) Outline Type Code Flange OD / Contact OD / Height (mm) Clamping Force (kN) min- max

DCR470E34

3400

3400

470

6.3

1000

1000

0.041

E

42 / 25 / 14.5

4 - 6

DCR610D34

3400

3400

610

8

1000

1000

0.035

D

47 / 29 / 14.5

8 - 12

DCR650G34

3400

3400

650

8.4

1000

1000

0.035

G

58 / 35 / 26.5

12 - 18

DCR1120F34

3400

3400

1120

17

1000

1000

0.02

F

75 / 47 / 26.5

18 - 26

DCR1430X34

3400

3400

1430

19.2

1000

1000

0.018

X

85 / 53 / 26.5

26 - 34

DCR1970C34

3400

3400

1970

30

1000

1000

0.0125

C

100 / 63 / 26.5

40 - 50

DCR2440V34

3400

3400

2440

33

1000

1000

0.01

V

110 / 73 / 26.5

50 - 62

DCR3640W34

3400

3400

3640

54

1000

1000

0.007

W

120 / 84 / 26.5

68 - 84

DCR4720A34

3400

3400

4720

69

1000

1000

0.057

A

150 / 100 / 35

80 - 100

DCR5110M34

3400

3400

5110

69

1000

1000

0.005

M

150 / 100 / 26.5

80 - 100

























Part Number

 UP TO 4200V

VDRM (V) VRRM (V) IT (AV) at TC= 60°C (A) ITSM at Tvj VR = 0 (kA) dV/dt (V/us) Non rep.dI/dt (A/us) Rth(j-c) (°C/W) Outline Type Code Flange OD / Contact OD / Height (mm) Clamping Force (kN) min- max

DCR780G42

4200

4200

780

10.5

1500

400

0.0268

G

58.5 / 34 / 26.72

10 - 13

DCR1150N42

4200

4200

1150

16.8

1500

1000

0.0221

N

73 / 47 / 34.89

20 - 25

DCR1260F42

4200

4200

1255

16.8

1500

1000

0.0184

F

73 / 47 / 26.72

20 - 25

DCR2040L42

4200

4200

2040

29

1500

400

0.0117

L

98.9/62.85/34.82

33 - 41

DCR2150C42

4200

4200

2150

29

1500

400

0.0101

C

98.9 / 62.9 / 26.76

33 - 41

DCR2930Y42

4200

4200

2930

40.6

1500

400

0.00835

Y

112.5 / 73 / 35.35

48 - 59

DCR3030V42

4200

4200

3030

40.6

1500

400

0.00746

V

110 / 73 / 27.57

48 - 59

DCR3790B42

4200

4200

3790

53.5

1500

400

0.007

B

120 / 84.6 / 34.87

68 - 84

DCR4100W42

4200

4200

3880

53.5

1500

400

0.00631

W

120 / 84.6 / 27.57

68 - 84

DCR4500A42

4200

4200

4500

60.8

2000

500

0.00603

A

148 / 100 / 35.47

74 - 91

DCR4880M42

4200

4200

4880

60.8

2000

500

0.00518

M

148 / 100 / 26.12

74 - 91

DCR6140H42

4200

4200

6140

90.91

2000

500

0.004255

H

172 / 115 / 35.15

120 - 155

DCR6650H42

4200

4200

6650

98.56

2000

500

0.004255

H

172 / 115 / 35.15

120 - 155

























Part Number UP to 5200V VDRM (V) VRRM (V) IT (AV) at TC= 60°C (A) ITSM at Tvj VR = 0 (kA) dV/dt (V/us) Non rep.dI/dt (A/us) Rth(j-c) (°C/W) Outline Type Code Flange OD / Contact OD / Height (mm) Clamping Force (kN) min- max

DCR690G52

5200

5200

690

9.45

1500

300

0.0268

G

58.5 / 34 / 26.84

10 - 13

DCR1020N52

5200

5200

1018

14.8

1500

800

0.0221

N

73 / 47 / 34.89

20 - 25

DCR1110F52

5200

5200

1107

14.8

1500

800

0.0184

F

73 / 47 / 26.84

20 - 25

DCR1850L52

5200

5200

1850

26.25

1500

300

0.0117

L

98.9 / 62.85 / 34.94

33 - 41

DCR1950C52

5200

5200

1950

26.25

1500

300

0.0101

C

98.9 / 62.9 / 26.84

33 - 41

DCR2630Y52

5200

5200

2630

36.7

1500

300

0.00835

Y

112.5 / 73 / 35.47

48 - 59

DCR2720V52

5200

5200

2720

36.7

1500

300

0.00746

V

110 / 73 / 27.69

48 - 59

DCR3480B52

5200

5200

3480

49

1500

400

0.007

B

120 / 84.6 / 34.99

68 - 84

DCR3640W52

5200

5200

3550

49

1500

400

0.00631

W

120 / 84.6 / 27.69

68 - 84

DCR3990A52

5200

5200

3990

53.4

2000

1000

0.00603

A

148 / 100 / 35.61

74 - 91

DCR4330M52

5200

5200

4330

53.4

2000

1000

0.00518

M

148 / 100 / 26.26

74 - 91

DCR5240H52

5200

5200

5240

77.8

2000

500

0.004255

H

170 / 115 / 35.27

120 - 150

DCR5890H52

5200

5200

5890

86.97

2000

500

0.004255

H

170 / 115 / 35.27

120 - 150
























Part Number UP TO 6500V VDRM (V) VRRM (V) IT (AV) at TC= 60°C (A) ITSM at Tvj VR = 0 (kA) dV/dt (V/us) Non rep.dI/dt (A/us) Rth(j-c) (°C/W) Outline Type Code Flange OD / Contact OD / Height (mm) Clamping Force (kN) min- max

DCR490J65

6500

6500

490

6.6

1500

200

0.0379

J

57 / 33.95 / 35.15

10 - 13

DCR590G65

6500

6500

595

6.6

1500

200

0.0268

G

58.5 / 34 / 27.1

10 - 13

DCR820N65

6500

6500

820

12

1500

200

0.0221

N

73 / 47 / 35.15

20 - 25

DCR890F65

6500

6500

894

12

1500

200

0.0184

F

73 / 47 / 27.1

20 - 25

DCR1570L65

6500

6500

1568

22

1500

300

0.0117

L

98.9 / 62.85 / 35.2

30 - 41

DCR1650C65

6500

6500

1650

22

1500

300

0.0101

C

98.9 / 62.9 / 27.1

33 - 41

DCR2220Y65

6500

6500

2220

30

1500

300

0.00835

Y

112.5 / 73 / 35.73

48 - 59

DCR2290V65

6500

6500

2290

30

1500

500

0.0074

V

110 / 73 / 27.95

48 - 59

DCR2880B65

6500

6500

2845

38.5

1500

300

0.007

B

120 / 84.6 / 35.25

68 - 84

DCR2950W65

6500

6500

2945

38.5

1500

300

0.00631

W

120 / 84.6 / 27.95

68 - 84

DCR3220A65

6500

6500

3220

44.2

2000

500

0.00603

A

148 / 100 / 35.85

74 - 91

DCR4420H65

6500

6500

4420

65.6

2000

500

0.00423

H

170 / 115 / 35

120 - 150

DCR4660H65

6500

6500

4660

69.3

2000

500

0.00423

H

170 / 115 / 35

120 - 150
























Part Number UP TO 8500V VDRM (V) VRRM (V) IT (AV) at TC= 60°C (A) ITSM at Tvj VR = 0 (kA) dV/dt (V/us) Non rep.dI/dt (A/us) Rth(j-c) (°C/W) Outline Type Code Flange OD / Contact OD / Height (mm) Clamping Force (kN) min- max

DCR390J85

8500

8500

387

5.25

1500

200

0.0379

J

57 / 33.95 / 35.51

10- 13

DCR470G85

8500

8500

467

5.25

1500

200

0.0268

G

58.5 / 34 / 27.46

10 - 13

DCR680N85

8500

8500

677

9.8

1500

200

0.0221

N

73 / 47 / 35.51

20 - 25

DCR750F85

8500

8500

733

9.8

1500

200

0.0184

F

73 / 47 /27.46

20 - 25

DCR1300L85

8500

8500

1300

17.6

1500

400

0.0117

L

98.9 / 62.85 / 35.56

33 - 41

DCR1840Y85

8500

8500

1840

25

1500

300

0.00835

Y

112.5 / 73 / 36.09

48 - 59

DCR1910V85

8500

8500

1910

25

1500

300

0.00746

V

110 / 73 / 28.31

48 - 59

DCR2400B85

8500

8500

2370

32.5

1500

300

0.007

B

120 / 84.6 / 35.61

68 - 84

DCR2450W85

8500

8500

2450

32.5

1500

300

0.00631

W

120 / 84.6 / 28.31

68 - 84

DCR2560A85

8500

8500

2560

32.5

1500

200

0.00603

A

148 / 100 / 35.0

74 - 91

DCR2760M85

8500

8500

2765

32.5

1500

200

0.0518

A

148 / 100 / 26.84

74 - 91

DCR3640H85

8500

8500

3640

54

2000

500

0.00425

H

170 / 115 / 35.65

120 - 150

DCR3980H85

8500

8500

3980

59.6

2000

500

0.00425

H

170 / 115 / 35.65

120 - 150



Darrah Electric is a proud Authorized Distributor of Dynex Semiconductor Products

Click here to see our inventory or contact us for lead times and/or pricing at (216) 631-0912.
