Published 10/28/2020

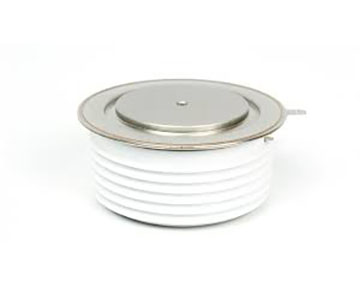

The DCR590G65 Phase Control Thyristor is one of our most efficient and dependable high-power Bipolar devices.
The device is designed with high surge current capabilities and manufactured in our G outline package.
In addition, the device has a chip junction temperature that works reliably within an operating range from -40°C to a maximum of 125°C.
The device’s characteristics are well suited for use in the soft starter applications with electric motors. Operating at line frequencies where switching losses are small, the low conduction losses of DCR590G65 enables increased system efficiency.
This product offers a number of benefits for end-user applications inclusive of; reduced system cost, improved thermal characteristics, maximized system efficiency and reliable operation in variable environments.

Key Features:
Double side cooling
High surge capability
High di/dt turn-on capability
High DC blocking stability
Low conduction losses
Low thermal resistance
Excellent pick up performance for parallel operation

Soft starter
High power drives
High voltage power supplies
Static switches

Darrah Electric is an Authorized Distributor of Dynex Semiconductor Products

Click here to viw Data Sheet.

Click here to see our inventory or contact us for lead times and/or pricing at (216) 631-0912.
