Published 02/28/2019

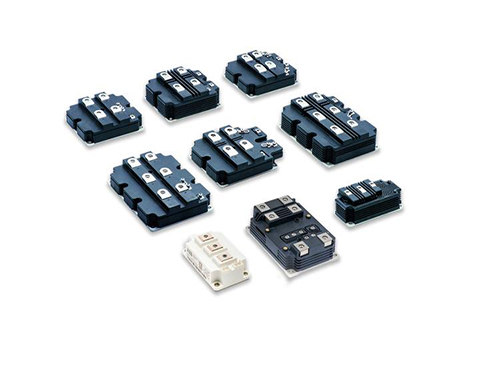

Insulated gate bipolar transistor (IGBT) and diode modules with SPT and SPT+ chips.
ABB’s IGBT power modules are available from 1700 to 6500 volt as single IGBT, dual/phase-leg IGBT, chopper and dual diode modules. The high-power HiPak IGBT modules feature low losses combined with soft-switching performance and record-breaking Safe Operating Area (SOA).
The 62Pak fast switching medium-power IGBT modules feature lowest switching losses, full 175 °C operation with full square SOA and standard package allowing drop-in replacement. Click below for Data Sheets.

Part Number Voltage
VCES (V)
Current
IC (A)
Type Package
5SNG 0150Q170300 1700 2 x 150 Phase leg IGBT 62Pak
5SNG 0200Q170300 1700 2 x 200 Phase leg IGBT 62Pak
5SNG 0300Q170300 1700 2 x 300 Phase leg IGBT 62Pak

Darrah is an authorized distributor for ABB. Click here to see our inventory or call our sales for questions at (216) 631-0912
