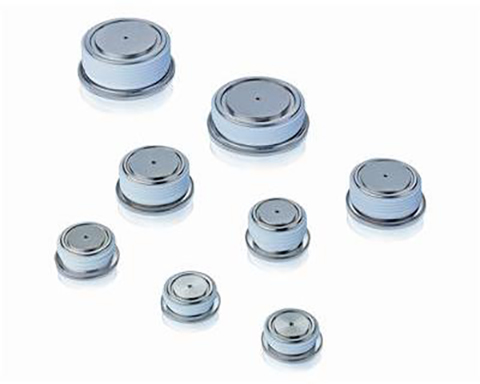

ABB Semiconductors Rectifier/Avalanche diodes
ABB Semiconductors offers a wide range of standard recovery diodes including both Rectifier and Avalanche diodes
Avalanche diodes are self-protected against transient over-voltages. Product catalog includes 11 types ranging from 1.7kV up to 5kV.
Normal recovery diodes are optimized with respect to low conduction losses and are able to handle very large currents. Product catalog includes 25 types ranging from 2kV up to 8.5kV.
Samples are available to support customer design-ins.
For downloading and printing of data sheets in pdf format, click on the part numbers.
Avalanche diodes Part number |
VRRM (V) | IFAVM (A) | IFSM (kA) | Package* (mm) |
| 5SDA 11D1702 | 1700 | 1310 | 15.0 | 60/34 |
| 5SDA 27F2002 | 2000 | 2700 | 31.0 | 75/47 |
| 5SDA 24F2303 | 2300 | 2350 | 29.0 | 75/47 |
| 5SDA 10D2303 | 2300 | 1140 | 13.5 | 60/34 |
| 5SDA 09D2604 | 2600 | 1020 | 11.5 | 60/34 |
| 5SDA 08D3205 | 3200 | 910 | 9.2 | 60/34 |
| 5SDA 21F3204 | 3200 | 2110 | 26.0 | 75/47 |
| 5SDA 07D3806 | 3800 | 790 | 7.6 | 60/34 |
| 5SDA 16F3806 | 3800 | 1620 | 20.5 | 75/47 |
| 5SDA 06D5007 | 5000 | 690 | 7.0 | 60/34 |
| 5SDA 14F5007 | 5000 | 1410 | 17.5 | 75/47 |
| Normal recovery diodes Part number |
VRRM (V) | IFAVM (A) | IFSM (kA) | Package* (mm) |
| 5SDD 70H2000 | 2000 | 7030 | 65.0 | 101.5/63 |
| 5SDD 65H2400 | 2400 | 6520 | 59.0 | 101.5/63 |
| 5SDD 51L2800 | 2800 | 5380 | 65.0 | 120/78 |
| 5SDD 60N2800 | 2800 | 6830 | 87.0 | 151/100 |
| 5SDD 60Q2800 | 2800 | 7835 | 87.0 | 151/100 |
| 5SDD 11D2800 | 2800 | 1285 | 15.0 | 60/34 |
| 5SDD 11T2800 | 2800 | 1285 | 15.0 | 58.5/34 |
| 5SDD 24F2800 | 2800 | 2600 | 30.0 | 75/47 |
| 5SDD 48H3200 | 3200 | 4710 | 61.0 | 101.5/63 |
| 5SDD 54N4000 | 4000 | 5200 | 85.0 | 151/100 |
| 5SDD 40H4000 | 4000 | 3847 | 46.0 | 101.5/63 |
| 5SDD 08T5000 | 5000 | 1028 | 12.0 | 58.8/34 |
| 5SDD 08D5000 | 5000 | 1028 | 12.0 | 60/34 |
| 5SDD 20F5000 | 5000 | 1978 | 24.0 | 75/47 |
| 5SDD 36K5000 | 5000 | 3638 | 45.0 | 101.5/63 |
| 5SDD 38H5000 | 5000 | 3814 | 45.0 | 101.5/63 |
| 5SDD 33L5500 | 5500 | 3480 | 46.0 | 120/78 |
| 5SDD 50N5500 | 5500 | 4570 | 73.0 | 151/100 |
| 5SDD 06D6000 | 6000 | 662 | 10.5 | 58.5/34 |
| 5SDD 10F6000 | 6000 | 1363 | 17.5 | 74.5/47 |
| 5SDD 14F6000 | 6000 | 1363 | 17.5 | 74.5/47 |
| 5SDD 31H6000 | 6000 | 3246 | 40.0 | 101.5/63 |
| 5SDD 50N6000 | 6000 | 4210 | 71.2 | 151/100 |
Darrah Electric is a proud Value Added Reseller of ABB Semiconductors.
We offer full product and application support with extended warranty options.
Click here to see our inventory or contact us for samples, lead times and/or pricing at (216) 631-0912.
