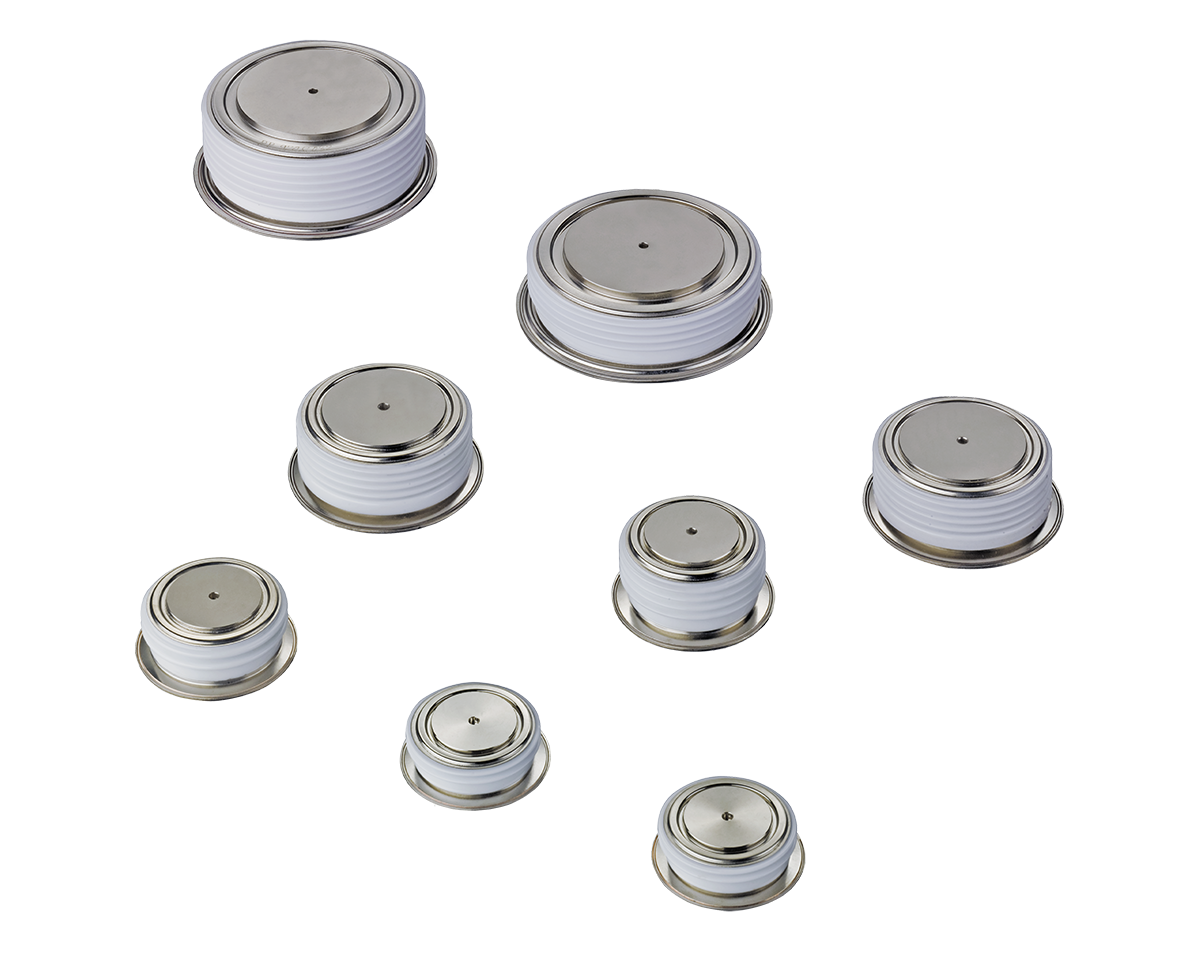

Diodes can be subdivided into two main classes: Rectifier diodes (standard recovery) and fast diodes. Rectifier diodes are generally used for conversion of AC (alternating current) to DC (direct current). While optimized for low conduction losses, Rectifier diodes withstand only moderate dynamic stress in transition from conducting to the blocking state.
Fast diodes, on the other hand, are companion devices to switches in DC to AC conversion. Every switch (GTO, IGCT or IGBT) requires a complementary diode (e.g. for "free-wheeling" reactive power) in order to enable operation of the DC-AC conversion system with inductive loads.
Fast diodes are optimized to accept high dynamic stress (fast transition from conducting to blocking state). However, they generally have higher conduction losses than rectifier diodes. For every switch family (GTO, IGCT and IGBT), we offer fast diodes that are optimized for the switch application.
Click on part number for Data Sheet
GTO free-wheeling
| Part number | VRRM (V) | IFAVM (A) | IFSM (kA) | VDC (V) | Package* (mm) |
| 5SDF 13H4501 | 4500 | 1200 | 25.0 | 2800 | 94/63 |
| 5SDF 10H6004 | 6000 | 1100 | 18.0 | 3800 | 94/63 |
IGBT diodes
| Part number | VRRM (V) | IFAVM (A) | IFSM (kA) | Qrr(µC) | Package* (mm) |
| 5SDF 20L4521 | 4500 | 1950 | 38 | 5300 | 120/85 |
| 5SDF 28L4521 | 4500 | 2620 | 48 | 10100 | 120/85 |
Diodes for IGCT Applications
|
Part Number |
VRRM (V) | IFAVM (A) | IFSM (kA) | VDC (V) | Package* (mm) |
| 5SDF 03D4502 | 4500 | 275 | 5.0 | 2800 | 60/34 |
| 5SDF 05F4502 | 4500 | 435 | 16.0 | 2800 | 75/47 |
| 5SDF 10H4503 | 4500 | 1100 | 20.0 | 2800 | 94/63 |
| 5SDF 20L4520 | 4500 | 1950 | 38 | 2800 | 120/85 |
| 5SDF 28L4520 | 4500 | 2620 | 48 | 2800 | 120/85 |
| 5SDF 02D6004 | 5500 | 175 | 3.0 | 3300 | 60/34 |
| 5SDF 04F6004 | 5500 | 380 | 10.0 | 3300 | 75/47 |
| 5SDF 08H6005 | 5500 | 585 | 18.0 | 3300 | 94/63 |
Darrah Electric is a Value Added Reseller of ABB Semiconductors.
We offer full product and application support with extended warranty options.
Click here to see our inventory or contact us for samples, lead times and/or pricing at (216) 631-0912.
