Draw Out Frame Bridges

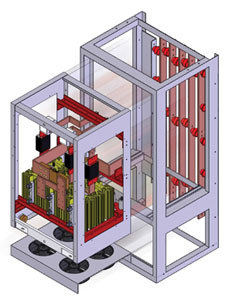

Draw Out Frame Bridge

Darrah Electric Company offers a full line of draw-out two and four quadrant SCR bridges.

This product line is especially suited where high current is required and it is necessary to parallel bridges. Draw-out bridges operated in parallel allow removal of one bridge while the system is in operation.

Darrah’s draw-out system includes the cradle or drawer along with the support frame. The support frame houses the AC/DC bus bars and draw-out fan panel. Darrah’s draw out systems are often designed for updated replacements for existing systems.

Draw-out operation is also available as single and three phase AC switch configurations.

  • Air Cooled Capacities to 4,000 Amps
  • Easily add Parallel Systems with change in load demand
  • Hot Swappable
  • Offers N + 1 Redundancy
