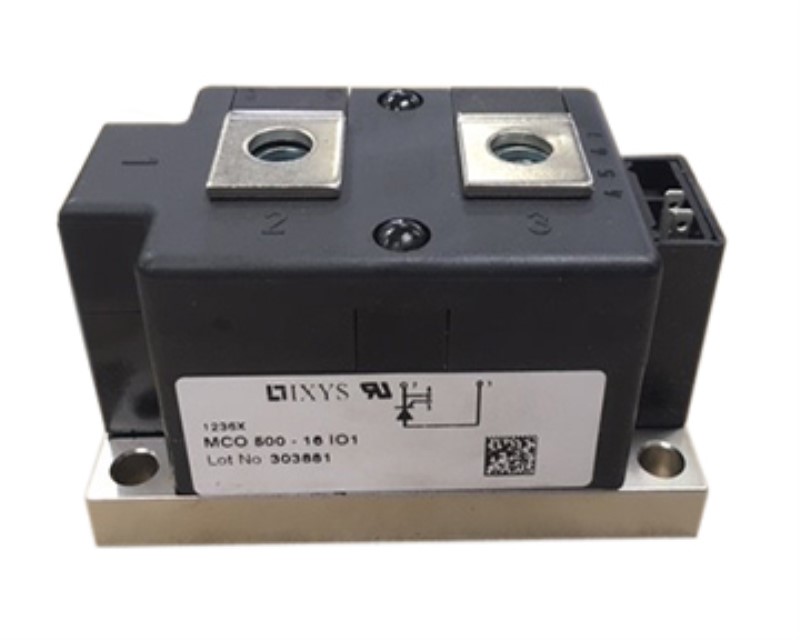

MCO500-16IO1
Amps: 560
Volts: 1600
This item is currently out of stock, to contact us for lead times please reach out to us directly at (216) 631-0912 or email us.
EU RoHS - Compliant
Maximum Gate Trigger Voltage (V)
2
Maximum Gate Trigger Current (mA)
300
Surge Current Rating (A)
18400
Maximum Holding Current (mA)
300
Repetitive Peak Reverse Voltage (V)
1600
Maximum Gate Peak Inverse Voltage (V)
10
Peak On-State Voltage (V)
1.27@1000A
Repetitive Peak Forward Blocking Voltage (V)
1600
Rated Average On-State Current (A)
560
Repetitive Peak Off-State Current (mA)
2
Phase Control
No
Minimum Operating Temperature (°C)
-40
Maximum Operating Temperature (°C)
125
Mounting
Screw
Package Height
49
Package Width
50
Package Length
92
PCB changed
4
Supplier Package
Y1-CU
Pin Count
4
- Volts : 1600
- Amps : 560
