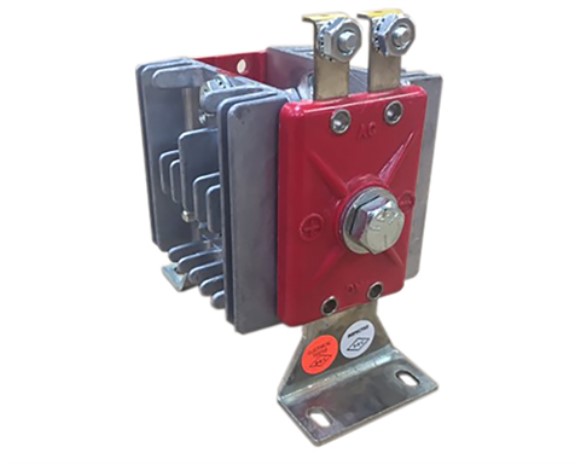

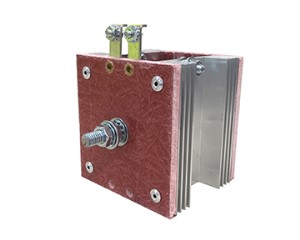

Complete bridge with heat sinks. No assembly required.
Type of Heat Sink: 2-1/2” x 2-3/4”
Type of Diode: 20
Peak Reverse Voltage: 600
Type of Circuit: 1 Phase Bridge
No. of Diodes in Series: 1
Type of Mounting: Brackets
No. of Diodes in Parallel: 1
Rated Continuous DC Amperes at 400°C Maximum Ambient Temperature
Natural Convection: 10A
Forced Air at 800 LFM: 20A
Blocking voltages to 1600V
Available in single or three phase bridge assemblies.
Available with bracket or bolt mounting
Can be supplied with either DO-4 or DO-5 rectifiers
Option: DC Surge Suppressor. Contact Darrah Electric for details.
- Amps : 10
- Volts : 600
