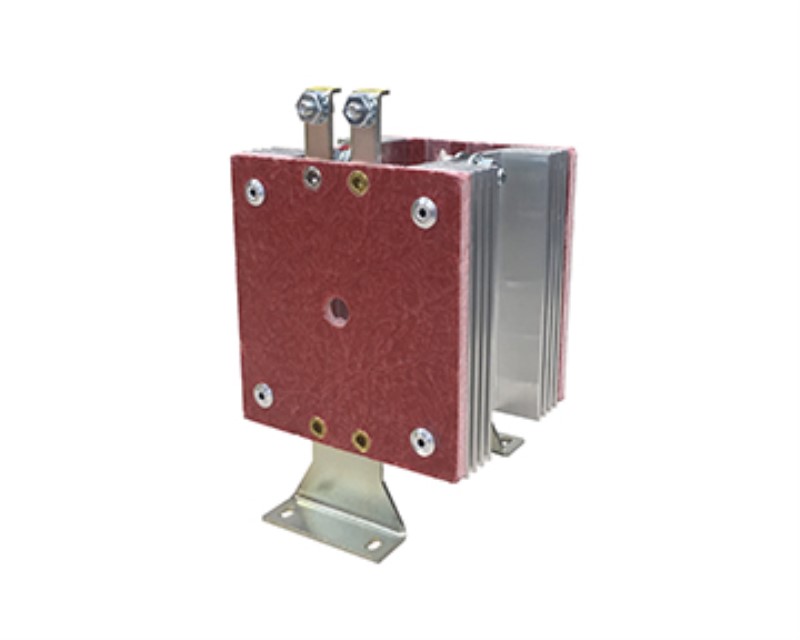

Complete bridge with heat sinks. No assembly required.
Type of Heat Sink: 3” x 4”
Type of Diode: 34
Peak Reverse Voltage: 800
Type of Circuit: 1 Phase Bridge
No. of Diodes in Series: 1
Rated Continuous DC Amperes at 400°C Maximum Ambient Temperature
Natural Convection: 35A
Forced Air at 800 LFM: 70A
Type of Mounting: Brackets
No. of Diodes in Parallel:1
Blocking voltages to 1600V
Available in single or three phase bridge assemblies.
Available with bracket or bolt mounting
Can be supplied with either DO-4 or DO-5 rectifiers
Option: DC Surge Suppressor. Contact Darrah Electric for details.
- Amps : 35
- Volts : 800
