PM450CLA060

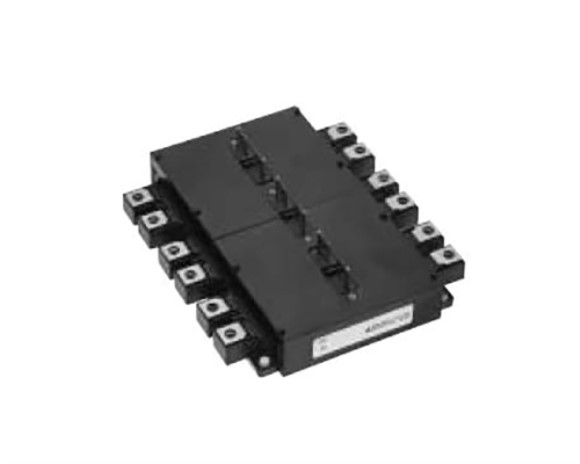

Mitsubishi Electric Intelligent Power Module

FEATURES
a) Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1μm fine rule process.
For example, typical Vce(sat)=1.9V @Tj=125°C
b) I adopt the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM.
• 3φ 450A, 600V Current-sense IGBT type inverter
• Monolithic gate drive & protection logic
• Detection, protection & status indication circuits for, short-circuit, over-temperature & under-voltage (Fo available from all arm devices)
• Acoustic noise-less 37kW class inverter application
• UL Recognized Yellow Card No.E80276(N) File No.E80271

APPLICATION
General purpose inverter, servo drives and other motor controls
