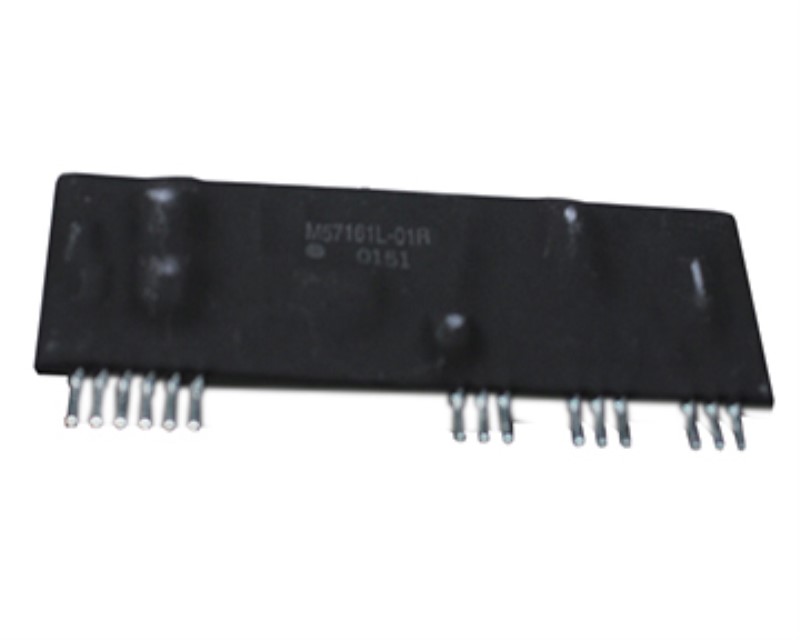

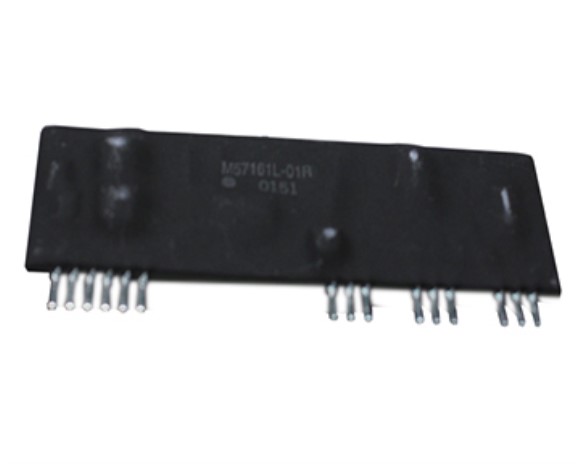

M57161L-01 is a hybrid integrated circuit designed for driving Powerex
F-Series IGBT modules. This gate driver converts logic level control
signals into high current gate drive with suitable on and off bias voltages. Electrical isolation of the input control signal is provided by an integrated high-speed optocoupler. A built-in isolated DC-DC converter supplies gate drive power. The driver has short-circuit and undervoltage protection and
provides a fault status feedback signal.
