LAC 300-S

You Pay $65.06
4 In Stock!

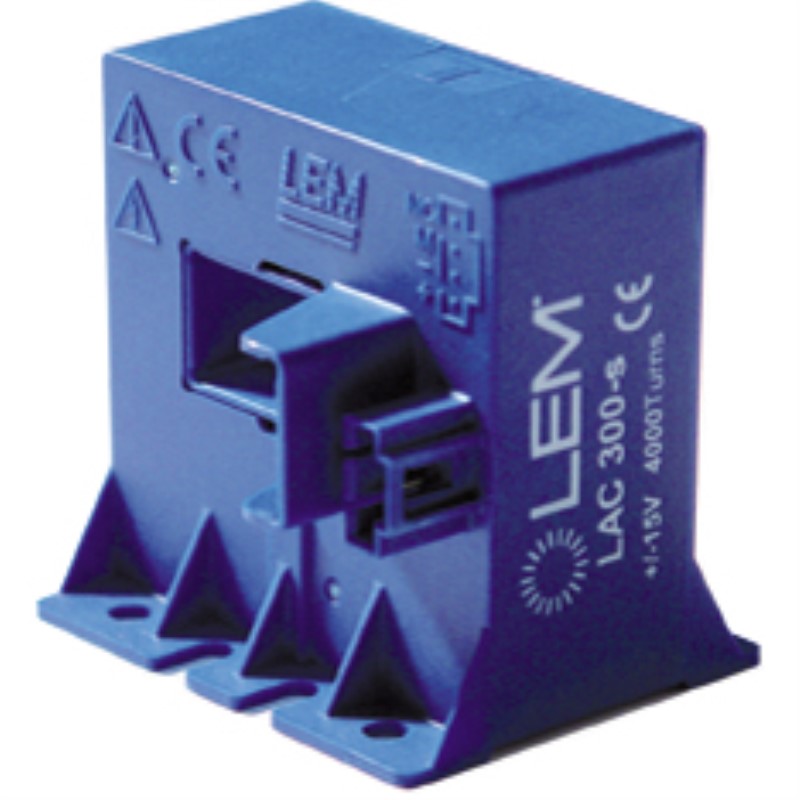

Current transducer

For the electronic measurement of currents: DC, AC, pulsed… with galvanic separation between primary and secondary circuits.

Closed loop (compensated) current transducer using the Hall effect
Insulated plastic case recognized according to UL 94-V0
Excellent accuracy
Very good linearity
Low temperature drift
Optimized response time
Wide frequency bandwidth
No insertion losses
High immunity to external interference
Current overload capability
Single or three phase inverters
Propulsion and braking choppers
Propulsion converters
Auxiliary converters
Battery chargers
