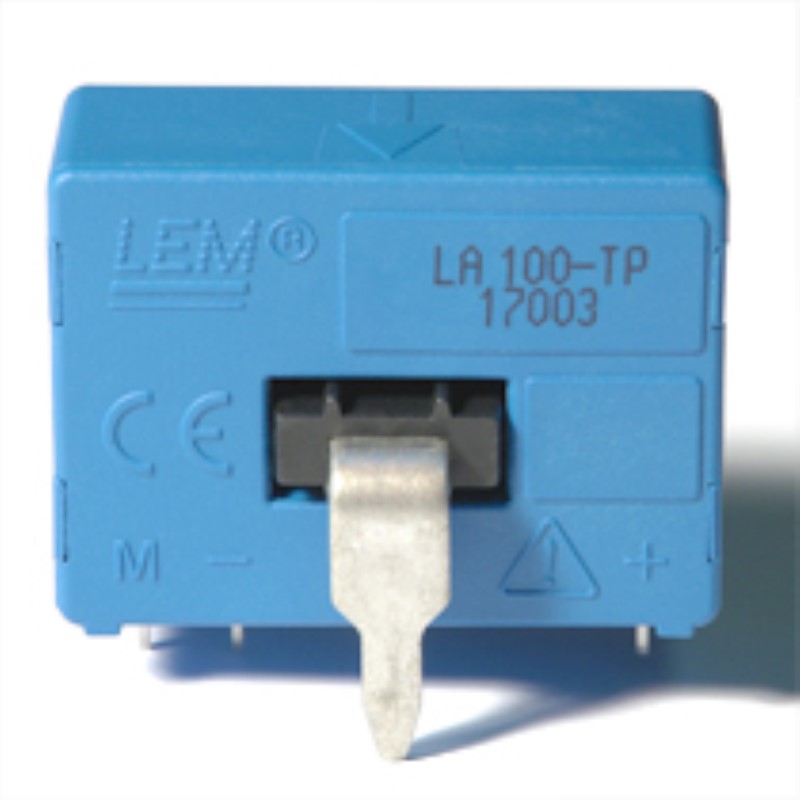

LA 100-TP

You Pay $43.56
Product out of stock

This item is currently out of stock, to contact us for lead times please reach out to us directly at (216) 631-0912 or email us.

Features
Closed loop (compensated) current transducer using the Hall effect
Printed circuit board mounting
Insulated plastic case recognized according to UL 94-V0
Advantages
Excellent accuracy
Very good linearity
Low temperature drift
Optimized response time
Wide frequency bandwidth
No insertion losses
High immunity to external interference
Current overload capability
Applications
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
AC variable speed drives and servo motor drives
Power supplies for welding applications
