Features

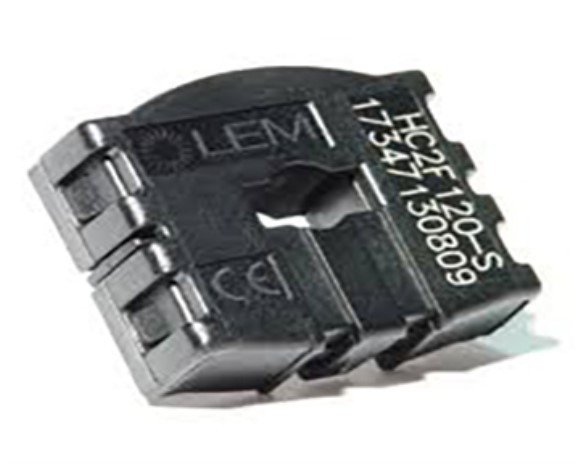

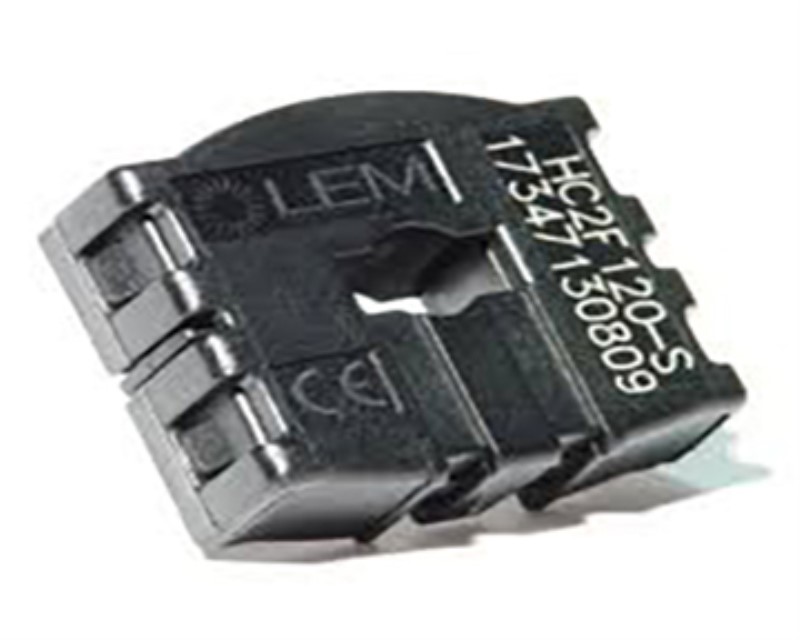

Open Loop transducer using the Hall effect
Low voltage application
Unipolar + 5 V DC power supply
Primary current measuring range from 80 A up to 250 A
Maximum rms primary current limited by the busbar, the magnetic core or the ASIC temperature T° < + 150°C
Operating temperature range: - 40°C < T° < + 125°C
Output voltage: full ratio-metric (in gain and offset)
Compact design for PCB mounting.
Advantages
Excellent accuracy
Very good linearity
Very low thermal offset drift
Very low thermal gain drift
Wide frequency bandwidth
No insertion losses.
