Amps: 2797
Volts: 1800

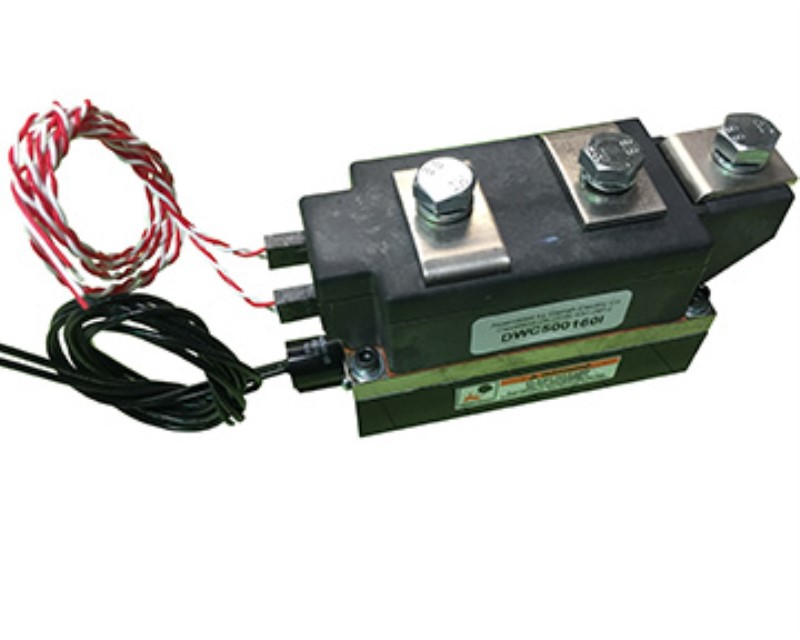

Integral water cooled isolated SCR modules for resistance welding


2797 Amps Welding Rating Amps RMS at 10% Duty Cycle

1522 Amps Welding Rating Amps RMS at 50% Duty Cycle

1097 Amps Welding Rating Amps RMS at 100% Duty Cycle

1800 SCR Voltage Rating (PIV)(VRRM)

Water Connection Location:
Bottom 1-1/2” Centers

Package Design:

Water Requirements:
Amps RMS is achieved with a cooling flow rate of 1.2 gallons (4.5 liters) per minute at 40°C water temperature.

Water Connections:
1/4-18 NPT tapped holes.

All contactors are supplied with an encapsulated thermostat sensor, 50°C open on rise, and is isolated to base to 2000 Volts. Thermostat leads are 24 inches long.

Options Include:
R/C snubber, MOV’s, and bus bars

  • Volts : 1800
  • Amps : 2797
