5STP 25L5200
Quantity Discounts:
10+ -292.00
20+ -437.00
Amps: 2760
Volts: 5200
This item is currently out of stock, to contact us for lead times please reach out to us directly at (216) 631-0912 or email us.

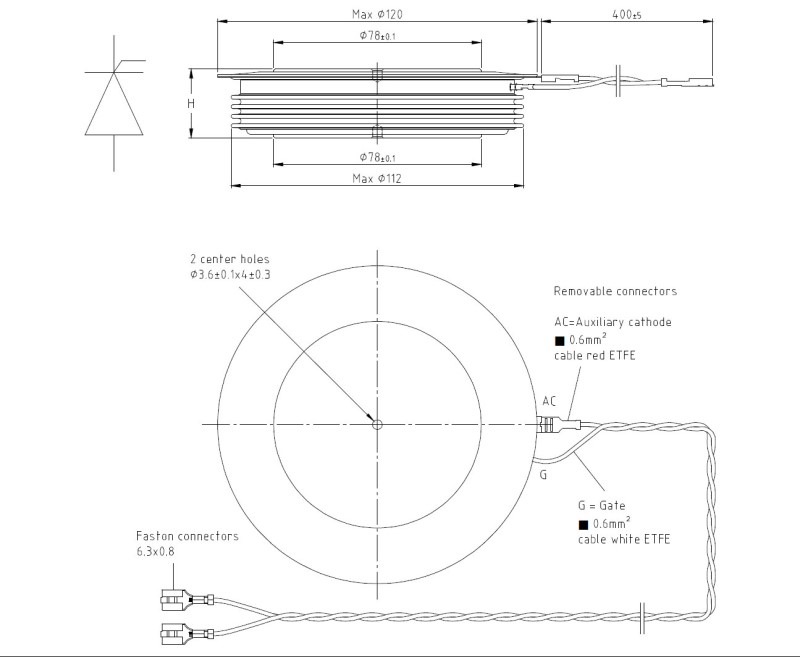

Phase Control Thyristor 5STP 25L5200
Features
Patented free-floating silicon technology
Low on-state and switching losses
Designed for traction, energy and industrial applications
Optimum power handling capability
Interdigitated amplifying gate
IT(RMS) = 4340 A
ITSM = 50.5·103 A
VT0 = 1 V
rT = 0.225 m
- Amps : 2760
- Volts : 5200
