DPH7824-468

You Pay $1,640.00
Product out of stock
Amps: 2500
Volts: 2600

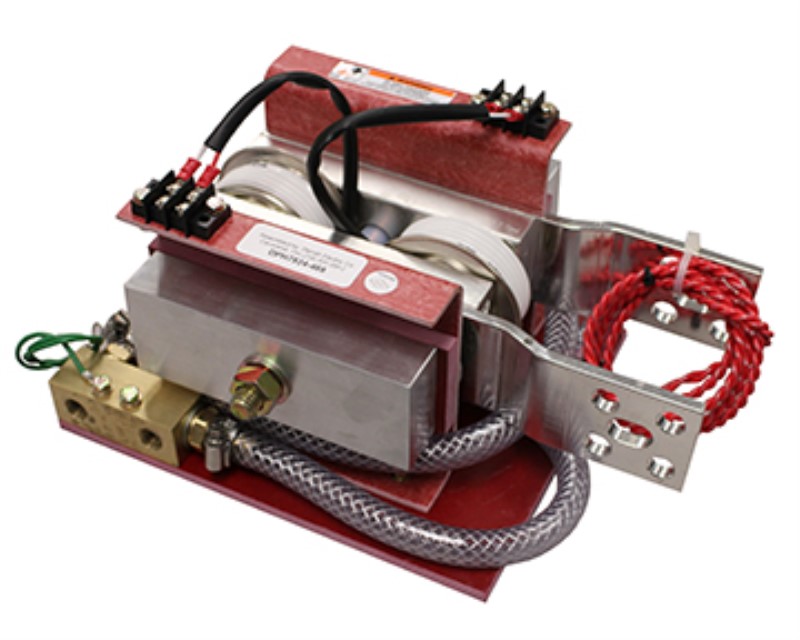

Automotive style SCR Contactors for resistance welding

Amps:

1200 Amps RMS at 100% Duty Cycle

10000 SGL. Cycle Surge Current (ITSM)

2600 SCR Voltage rating (PIV) (VRRM)

Tang Type Description:
Bus tang connections are standardized to fit all applications. Four holes plus center slot. Holes are on 1.06” centers. The center slot is 0.5” x 0.75”.

Water Requirements:
Amps RMS is achieved with a cooling flow rate of 1.2 gallons (4.5 liters) per minute at 40°C water temperature.

Water Connection:
1/4-18 NPT tapped holes.

Cooling Block:
Copper-Nickel Plated.

Thermostat:
All contactors are supplied with a thermostat sensor, 70°C open on rise, recloses at 58°C, and is isolated to base to 2000 Volts. Thermostat leads are 12 inches long.

  • Amps : 2500
  • Volts : 2600
