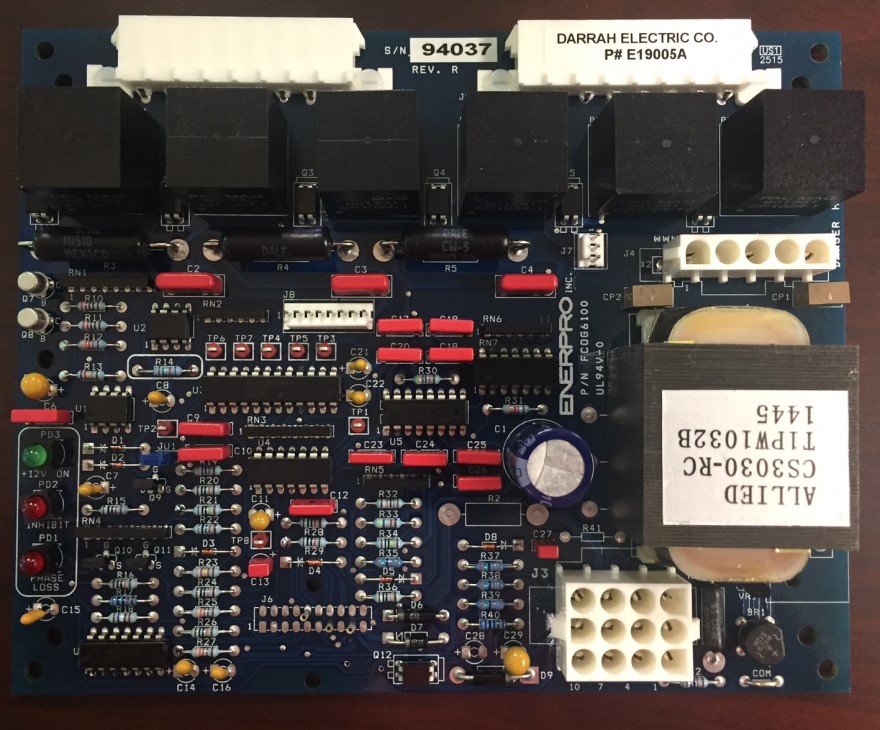

Darrah Electric Company's 3 Phase SCR Control Circuit Board

DARRAH PART NUMBER:               E19005A                                             ENERPRO PART NUMBER:           FCOG6100

PRINT I.D. NUMBER:                        E4                                                       CIRCUIT     PRIMARY SCR’S (6)

Description of Operation

Circuit board responds to a 0 – 5 volt dc signal from the “E5” regulator and produces a controlled set of six 60 degree spaced high current SCR gate pulses.

Download instructions for Terminal Connections and Troubleshooting Details.

Circuit Board Specifications & Troubleshooting

If you would like additional information or if you would like to talk to someone please feel free to call or email us directly.

Ed McKinley - D.C. Power Supplies
Phone: 216.631.9938
E-mail: ed_mckinley@darrahelectric.com
