Published 11/21/2018

Benefits

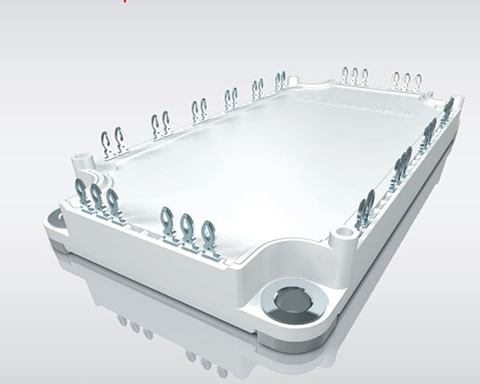

When it comes to meeting our customers’ needs, the SEMiX 6 module platform constitutes a scalable and flexible solution for demanding and high-performance inverter architectures. SEMiX 6 features press-fit technology for both the auxiliary and the power terminals. Using press-fit technology for all the terminals reduces assembly costs to a minimum and offers the possibility of 100% process control. SEMiX 6 introduces a new press-fit technology designed to ensure full compatibility with the market standard. The press-fit zone is optimized for gentle and reliable PCB assembly. SEMiX 6 will be available as a B6U rectifier module for up to 2200V. These modules will mark the launch of our new SKR PEP rectifier technology for leading edge power density and environmental robustness. With junction temperatures of up to 175°C, this technology delivers far superior performance than comparable solutions on the market. This improved performance combined with our design for minimum power losses is ideal when it comes to achieving compact inverter systems on a single PCB basis. The target area of application is rectifiers for motor drives of up to 160kW. The rectifier portfolio is the perfect match for the IGBT 6-packs in the same module package, equipped with the latest IGBT chip technology in 650V, 1200V and 1700V.

Applications
This tried and tested package features a robust baseplate solution combined with a full press-fit concept for all the electric terminals, creating a competitive platform for all-in-one PCB inverter solutions. The package is suitable for a broad range of applications:
- AC inverter drives
- UPS systems
- Renewable energy systems

Product range

SEMiX 6 is available as a B6U rectifier module with a VRRM of 1600V and 2200V optimized for drives inverters of up to 160kW. The portfolio will be completed with IGBT 6-packs in 650V, 1200V and 1700V.

Click here for Datasheet

Click here to view our SEMIKRON product offerings or call our sales for questions or lead times at (216) 631- 0912
