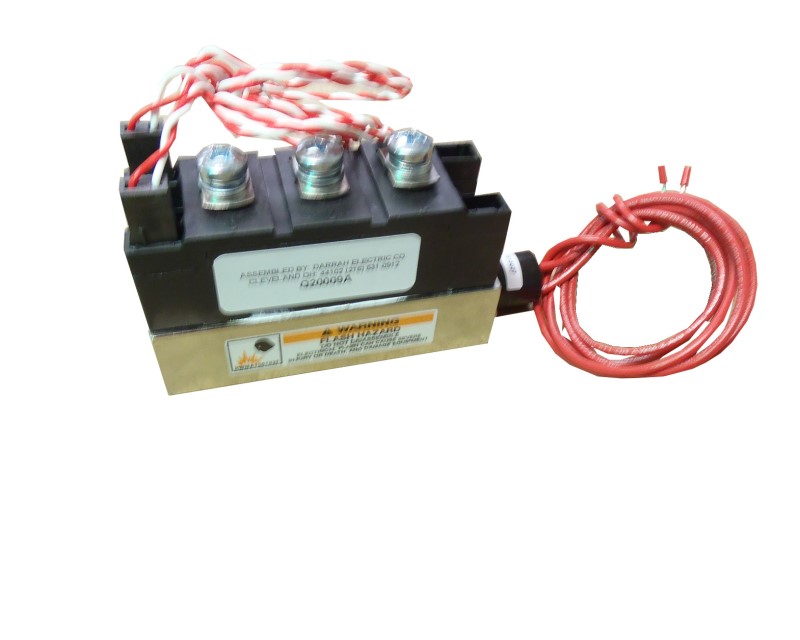

Integral water cooled isolated SCR modules for resistance welding
1068 Amps Welding Rating Amps RMS at 10% Duty Cycle
755 Amps Welding Rating Amps RMS at 50% Duty Cycle
450 Amps Welding Rating Amps RMS at 100% Duty Cycle
1800 SCR Voltage Rating (PIV)(VRRM)
Water Connection Location:
Bottom 2” Centers
Amps RMS is achieved with a cooling flow rate of 1.2 gallons (4.5 liters) per minute at 40°C water temperature.
1/4-18 NPT tapped holes.
All contactors are supplied with an encapsulated thermostat sensor, 50°C open on rise, and is isolated to base to 2000 Volts. Thermostat leads are 24 inches long.
R/C snubber, MOV’s, and bus bars
- Amps : 1068
- Volts : 1800
