LTSR 15-NP

You Pay $16.05
Product out of stock
Quantity Discounts:
10+ 13.15
100+ 10.90

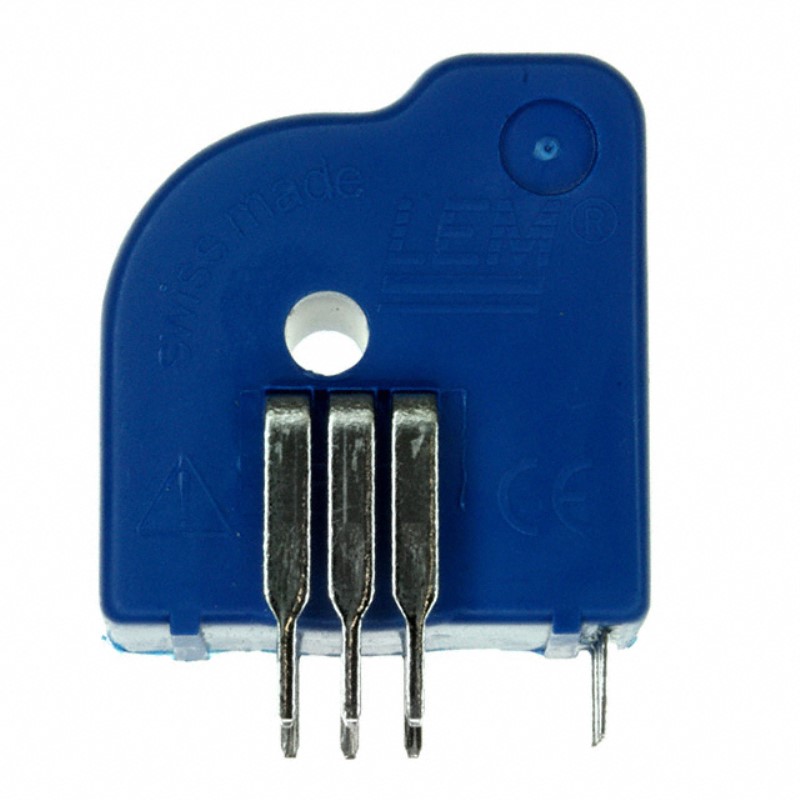

Multi-Range Current Transducer

For the electronic measurement of currents: DC, AC, pulsed, mixed... with galvanic isolation between primary circuit (high power) and secondary circuit (electronic circuit).

Features
Closed loop (compensated) multi-range current transducer using the hall effect
Unipolar voltage supply
Compact design for PCB mounting
Isolated plastic case recognized according to UL 94-V0
Incorporated measuring resistance
Access to the internal voltage reference
Possibility to feed the transducer reference from external supply
Advantages
Excellent accuracy
Very good linearity
Very low temperature drift
Optimized response time
Wide frequency bandwidth
No insertion losses
High immunity to external interference
Current overload capability
Applications
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
