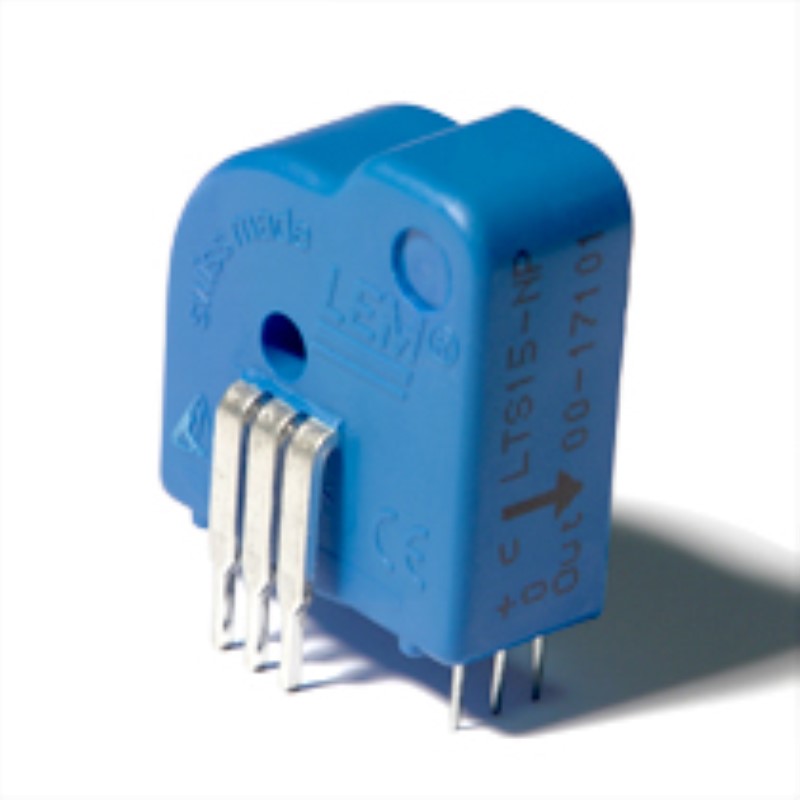

LTS 15-NP


Please contact us for pricing & shipping information!

Contact Us

For the electronic measurement of currents: DC, AC, pulsed, mixed... with galvanic isolation between primary circuit (high power) and secondary circuit (electronic circuit).

Features
Closed loop (compensated) current transducer using the hall effect
Unipolar voltage supply
Compact design for PCB mounting
Isolated plastic case recognized according to UL 94-V0
Incorporated measuring resistance
Extended measuring range
Advantages
Excellent accuracy
Very good linearity
Low temperature drift
Optimized response time
Wide frequency bandwidth
No insertion losses
High immunity to external interference
Current overload capability
Applications
AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
