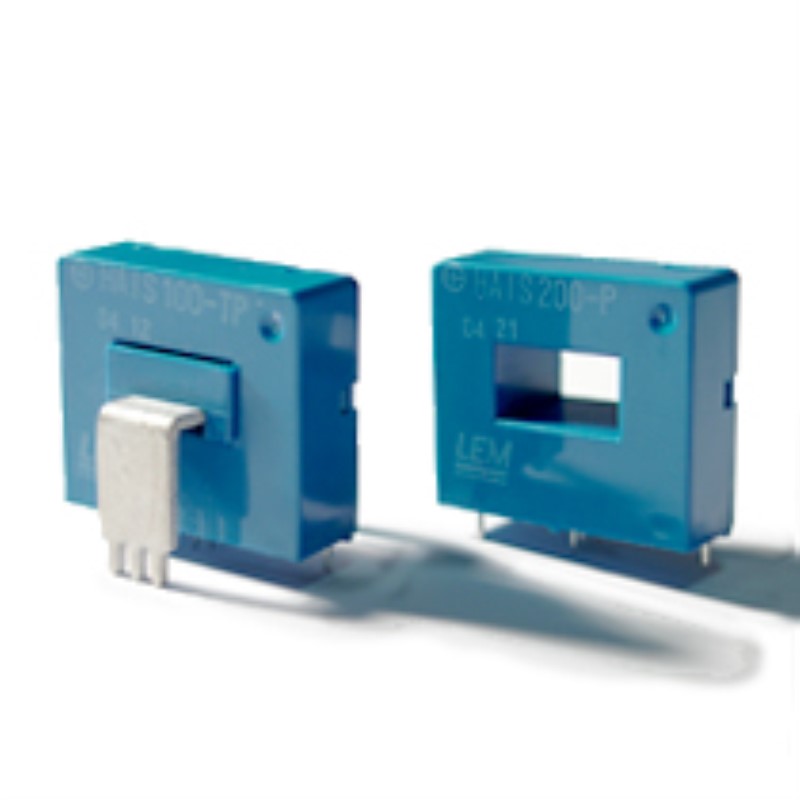

HAIS 100-TP

You Pay $23.80
Product out of stock
Quantity Discounts:
10+ 19.45
100+ 16.20

This item is currently out of stock, to contact us for lead times please reach out to us directly at (216) 631-0912.

Features
Hall effect measuring principle
Galvanic separation between primary and secondary circuit
Insulation test voltage 2500 V
Low power consumption
Single power supply +5 V
Fixed offset & sensitivity
Insulating plastic case recognized according to UL 94-V0
Advantages
Small size and space saving
Only one design for wide current ratings range
High immunity to external interference
V ref IN/OUT
Applications
AC variable speed drives and servo motor drives
Static converters for DC motor drivers
Battery supplied applications
Uniterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
