DK 100 B420

You Pay $375.70
Product out of stock

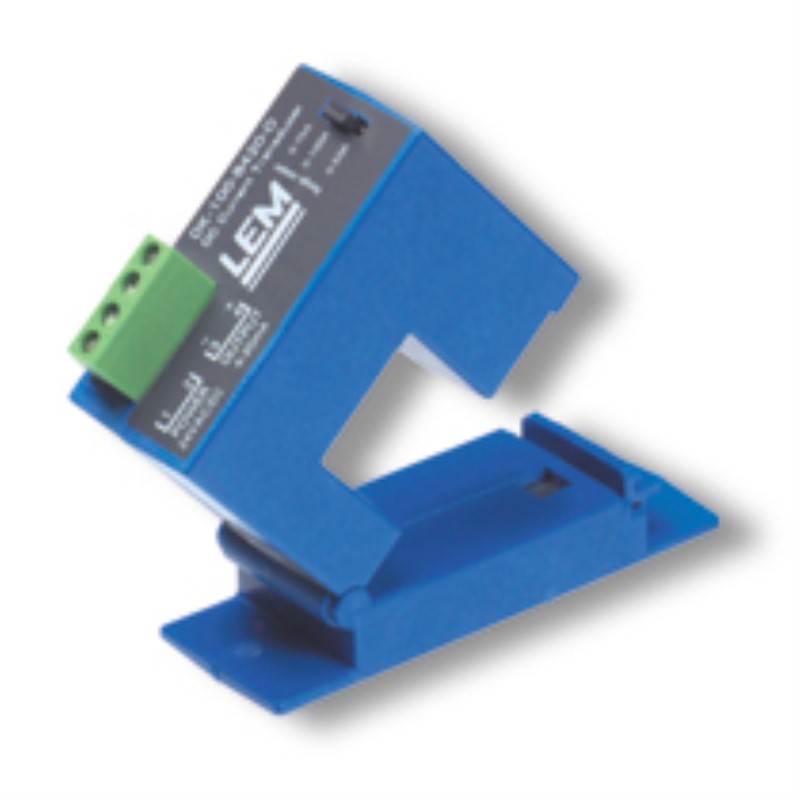

Split core transducer for the electronic measurement of DC current, with galvanic separation between the primary circuit and the secondary circuit. 4-20 mA output current proportional to measured current.

Features
DC measurement (magnitude only)
Split core case
Three jumper selectable ranges
Industry standard 4-20 mA unipolar current output
Panel mounting
Insulating plastic case recognized according to UL 94-V0
Advantages
Large aperture
Extended measuring range
High insulation between primary and secondary circuits
Easy to mount, cut installation costs
No insertion loss (voltage drop)
Applications
Battery Banks
Load current monitoring
Charging current monitoring
Operation supervision
Power Supplies
DC power or auxiliary loads measurement
Electronic heating elements
Faster response than temperature transducers
