AHR 2000 B420


Please contact us for pricing & shipping information!

Contact Us

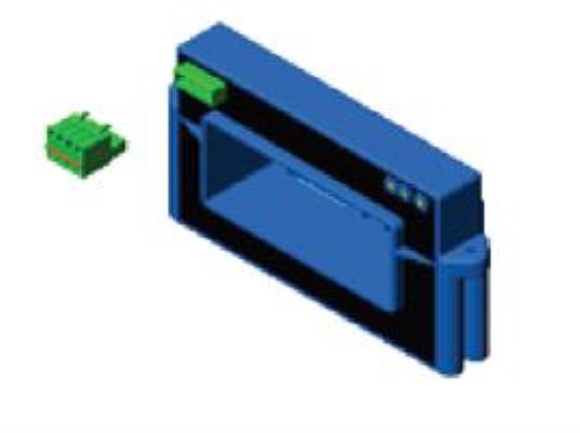

AC/DC Current transducer AHR-B420
The transducer for the electronic measurement of DC & distorted AC waveform currents, with galvanic isolation between the primary circuit (power) and the secondary circuit (measurement).True RMS 4-20 mA current output.

Features
DC + distorted AC waveform currents measurement
True RMS output
Busbar or panel mounting
Split core type
Isolated plastic case recognized according to UL94-V0.
Advantages
High isolation between primary and secondary circuits
Eliminates insertion loss
Easy installation.
Applications
AC power supplies or Motors:
True RMS current sensing - the most accurate way to monitor power supply or motor input power
VFD Controlled Loads:
VFD output current monitoring to indicate how the motor and the attached load are operating
SCRs or Switch-mode Rectifiers:
Accurate measurement of output current
Renewable Energy Installations or Backup Batteries:
Continuous condition monitoring allowing automatic failure detection/ anticipation.
