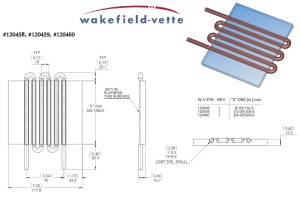

120458 Exposed Tube Liquid Cold Plate
Wakefield- Vette’s exposed tube liquid cold plates ensure minimum thermal resistance between the power device and the cold plate by placing the coolant tube in direct contact with the power device’s base. Direct contact reduces the number of thermal interfaces between device and fluid thus increasing performance for the application.
Plate Surface: 6.00" x 7.00"
Economical extruded base with continuous copper tube
Continuous copper tube reduces leakage
Tube and base bonded by highly conductive epoxy
Numerous flow paths for various location of heat sourcesBase Plate: Extruded Aluminum
Copper Tube Material: 0.375" OD x 0.049" wall
Thermal Epoxy fill with high thermal conductivity

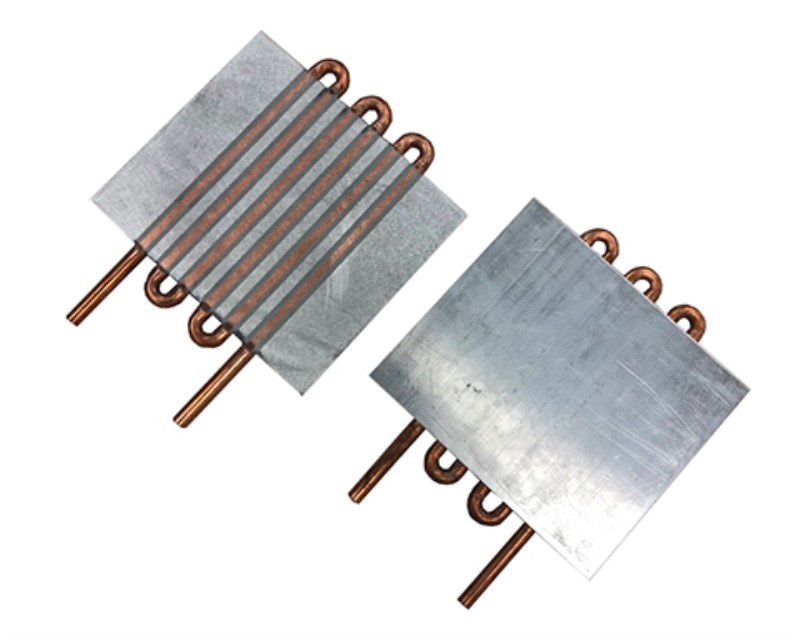

Exposed Tube 6 Pass Coldplate
