111RK120

You Pay $74.00
5 In Stock!
Amps: 170
Volts: 1200

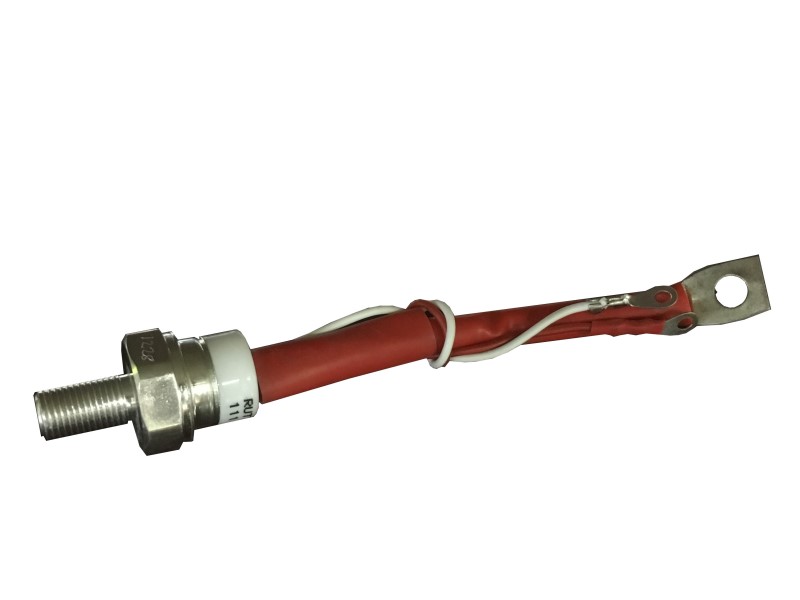

Thyristor (SCR) Stud

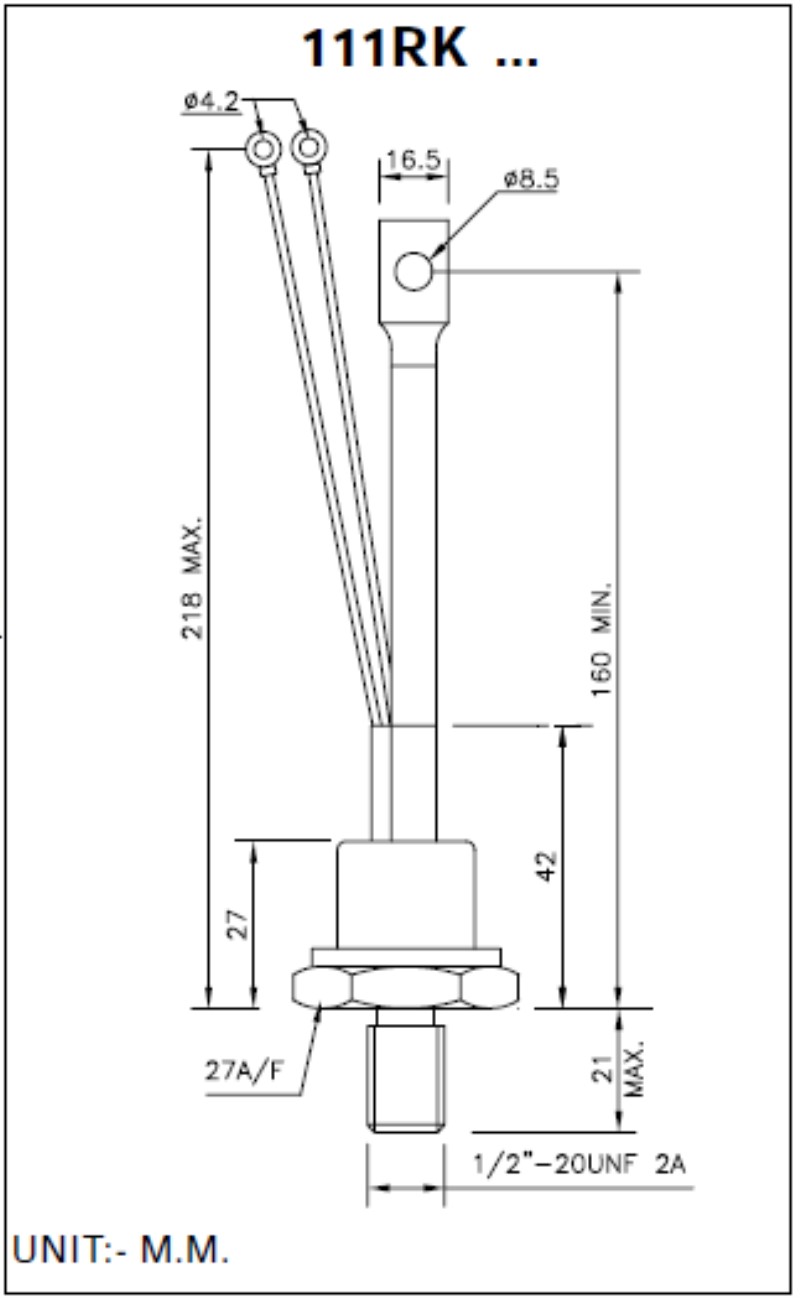

1/2-20 Stud type, 5" braided pigtail

All diffused series.

International Standard Case TO-209 AC (TO-94).

Threaded studs UNF 1/2’’ - 20 UNF 2A.

High di/dt and dv/dt capabilities.

Reliable blocking at elevated temperature.

High surge current rating 2700 A.

High I2t capability 36400 A2Sec.

Excellent dynamic characteristics.

Compression Bonded Encapsulation for heavy duty operations such as severe thermal cycling.

  • Volts : 1200
  • Amps : 170
