Darrah Electric Company's Automatic Constant Current and Voltage Regulator Circuit

Darrah Part Number E19001A

Description of Operation

Circuit board takes references from the positive bus, shunts, control pot settings and depending on their values, delivers a 0-5 volt dc drive signal to the “E4” firing board.

Download instructions for terminal connections and troubleshooting details.

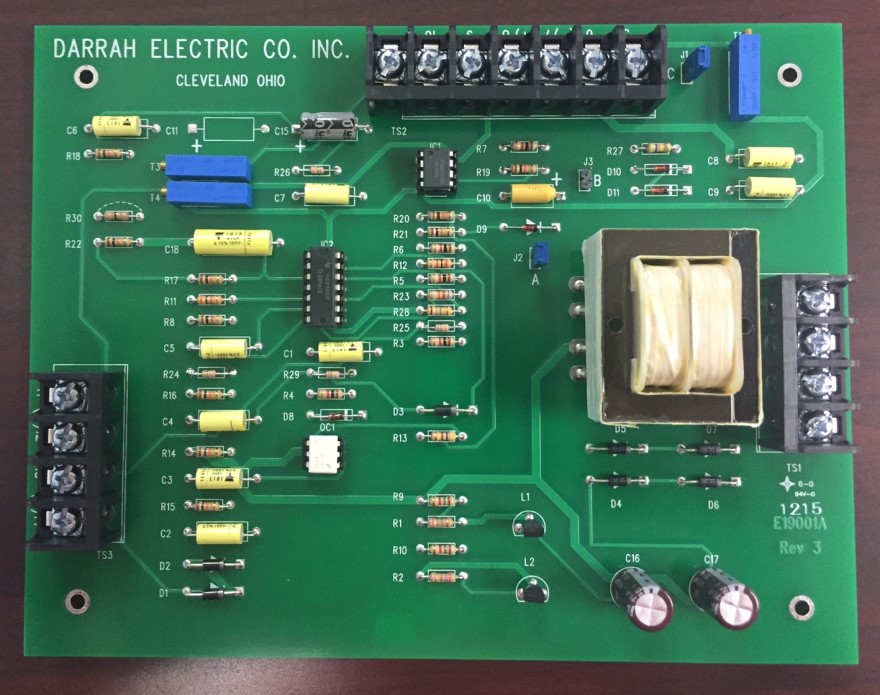

Automatic Constant Current & Voltage Regulator Board

If you would like additional information or if you would like to talk to someone please feel free to call or email us directly.

Ed McKinley - D.C. Power Supplies
Phone: 216.631.9938
E-mail: ed_mckinley@darrahelectric.com
